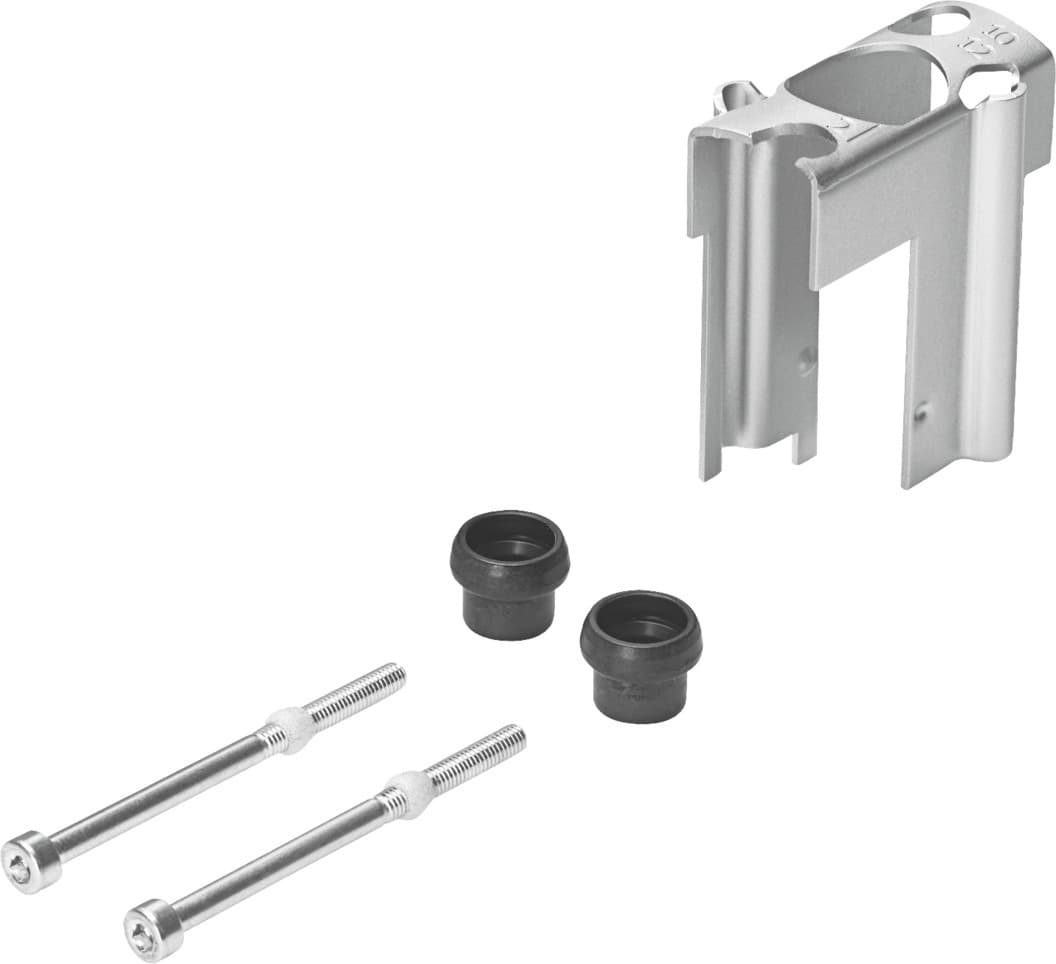

Product Model
cpe10-h3-set
Selling Points
- 1The CPE10-H3-SET retaining bracket offers moderate corrosion resistance with a classification of CRC 2, making it suitable for various industrial applications.
- 2This retaining bracket features a max. tightening torque of 1.2 Nm, ensuring secure and reliable mounting in pneumatic systems.
- 3With a product weight of 16 g, the CPE10-H3-SET is lightweight and easy to handle, reducing installation time and effort.
- 4The bracket is designed for threaded mounting, providing a straightforward and efficient installation process.
- 5The CPE10-H3-SET conforms to RoHS compliance, ensuring environmental sustainability and adherence to regulatory standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Max. tightening torque | 1.2Nm | Product weight | 16g |
Type of mounting | Screw-in | Note on materials | RoHS-compliant |
Seals material | NBR | Retaining bracket material | High-alloy stainless steel |
Material of screws | Steel Galvanized | Manufacturer ID | 550577 |
Specifications may be subject to change without notice
