Product Model

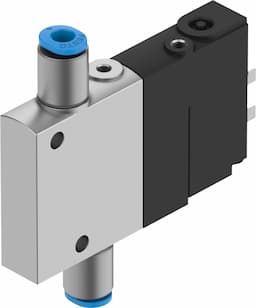

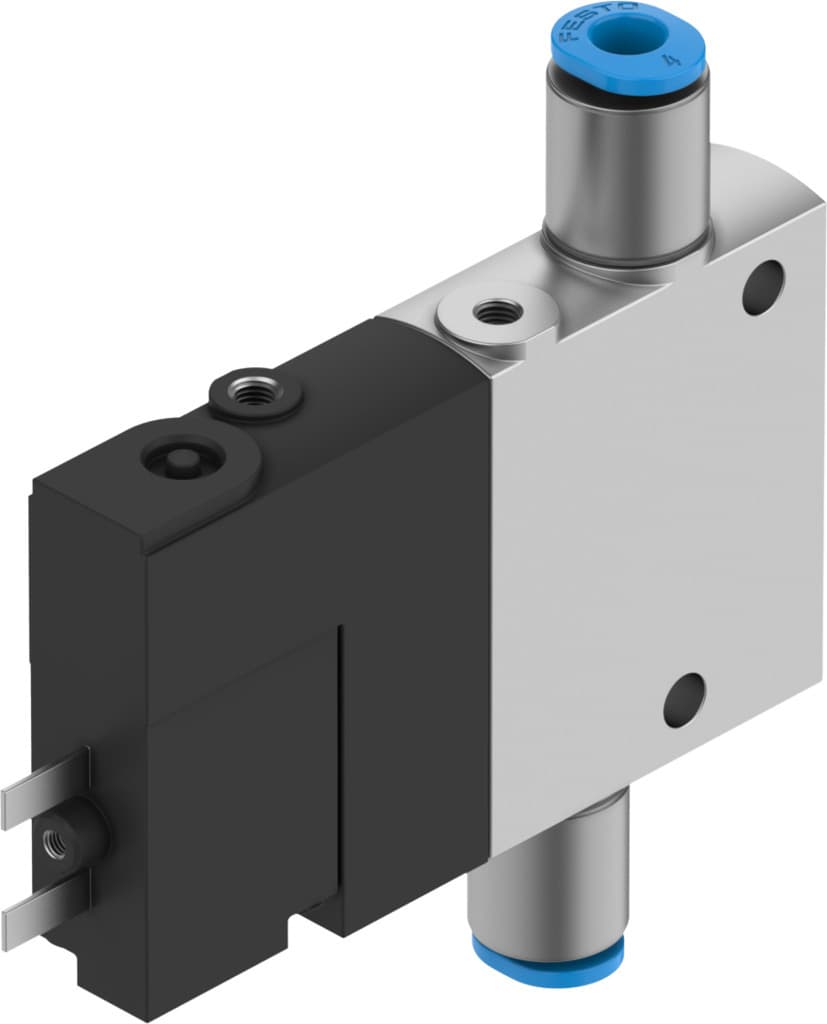

cpe10-m1bh-3ol-qs-4
Selling Points
- 1The CPE10-M1BH-3OL-QS-4 solenoid valve features a standard nominal flow rate of 190 l/min, ensuring high performance and efficiency in pneumatic applications.
- 2With a construction width of 10 mm, this valve is designed to be compact and versatile, making it ideal for various industrial settings.
- 3The valve operates on 24V DC, providing reliable and efficient electric actuation. This ensures precise control and minimal energy consumption.
- 4Built with a piston gate valve design and featuring a pneumatic spring reset, the CPE10-M1BH-3OL-QS-4 is designed for durability and long service life.
- 5The valve offers manual override and can be mounted with through-hole connections, providing flexibility in installation and operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 3/2, open, monostable | Actuation type | Electrical |
Width | 10mm | Standard nominal flow rate | 190l/min |
Pneumatic working port | QS-4 | Operating voltage | 24V DC |
Operating pressure | 2.5bar 8bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 4mm |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991656 | Valve position ID | Label holder |
Lap | Overlap | Switching time off | 14ms |
On switching time | 14ms | Duty cycle | 100% in combination with holding current reduction |
Max. positive test pulse with 0 signal | 1200μs | Max. negative test pulse on 1 signal | 900μs |
Coil characteristics | 24 V DC: 1.28 W | Permissible voltage fluctuations | -15 % / +10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Electrical connection | 2-pin | Type of mounting | With through-hole |
Pilot exhaust air port 82 | M3 | Pilot air port 12 | M3 |
Pneumatic connection 1 | QS-4 | Pneumatic connection 2 | QS-4 |
Pneumatic connection 3 | M7 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 196852 |
Specifications may be subject to change without notice
