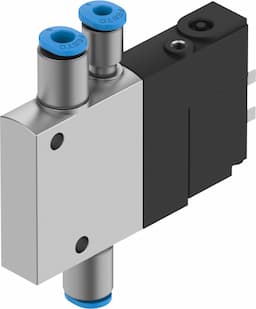

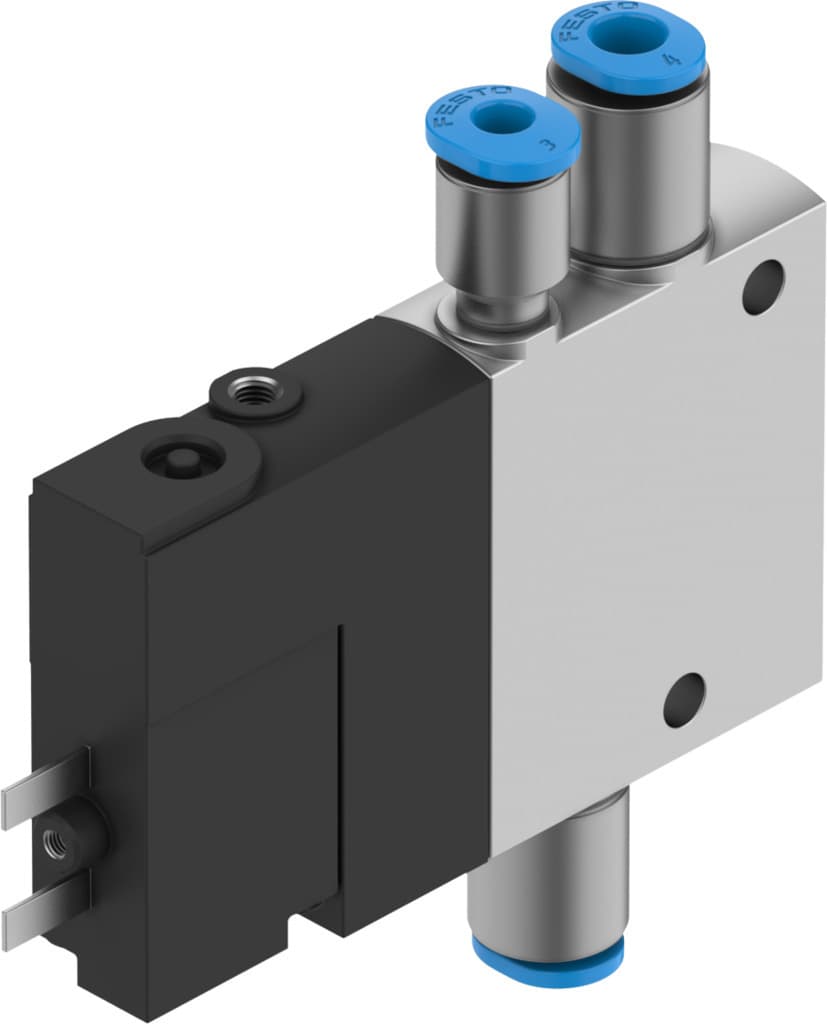

Product Model
cpe10-m1bh-3ols-qs-4
Selling Points
- 1The Festo CPE10-M1BH-3OLS-QS-4 solenoid valve is designed for 3/2 open, monostable operation, ensuring precise control over pneumatic systems. Its electrical actuation type provides quick and reliable switching times of 14 ms on and off.
- 2With a standard nominal flow rate of 190 l/min and an operating pressure range of -0.9 to 10 bar, this valve is suitable for a variety of industrial applications requiring high flow rates and pressure stability.
- 3The valve features a soft sealing principle and is designed with a piston slide structure, ensuring minimal leakage and high durability. It also meets IP65 protection standards with a plug socket as per IEC 60529.
- 4The CPE10-M1BH-3OLS-QS-4 is certified by c UL us and has a maritime classification, making it suitable for use in marine environments. It also complies with ISO 8573-1:2010 for compressed air quality.
- 5This solenoid valve supports lubricated operation and can withstand various environmental conditions, including vibration and shock tests. It also has a moderate corrosion resistance class (CRC 2) and operates within a media temperature range of -5°C to 50°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 3/2, open, monostable | Actuation type | Electrical |
Width | 10mm | Standard nominal flow rate | 190l/min |
Pneumatic working port | QS-4 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 4mm |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Non-reversible |
Symbol | 00991402 | Valve position ID | Label holder |
Lap | Overlap | Pilot pressure MPa | 0.25MPa 0.8MPa |
Pilot pressure | 2.5bar 8bar | Switching time off | 14ms |
On switching time | 14ms | Duty cycle | 100% in combination with holding current reduction |
Max. positive test pulse with 0 signal | 1200μs | Max. negative test pulse on 1 signal | 900μs |
Coil characteristics | 24 V DC: 1.28 W | Permissible voltage fluctuations | -15 % / +10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Electrical connection | 2-pin |
Type of mounting | With through-hole | Pilot exhaust air port 82 | M3 |
Pilot air port 12 | M3 | Pneumatic connection 1 | QS-4 |
Pneumatic connection 2 | QS-4 | Pneumatic connection 3 | M7 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 196855 |
