Product Model

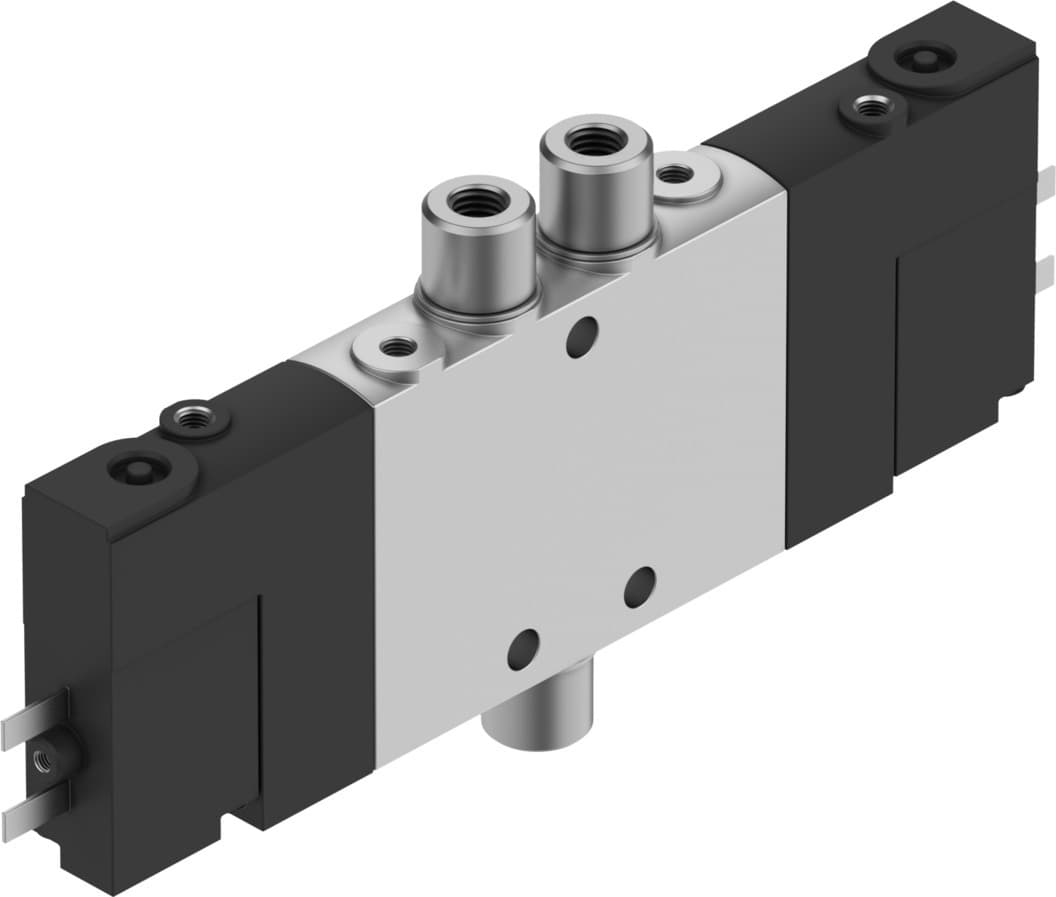

cpe10-m1bh-5/3e-m5-b
Selling Points
- 1The CPE10-M1BH-5/3E-M5-B solenoid valve is designed for long-lasting performance with a service life of 23 million cycles, ensuring consistent operation in demanding applications.
- 2This solenoid valve operates with a mechanical spring return, providing quick and precise switching between logic 0 and logic 1 states, enhancing overall system efficiency.
- 3The valve is tested for vibration and shock resistance, meeting severity levels 2 in accordance with FN942017-4 and EN 60068-2-6, ensuring it can withstand harsh industrial environments.
- 4The CPE10-M1BH-5/3E-M5-B is compatible with various thread sizes (M5, M7, Gx, G¼, Gy) and plug connectors (QS-4, QS-6, QS-8, QS-10, QS-12), offering flexibility in system design and integration.
- 5Festo provides detailed product reliability data sheets and user documentation, ensuring users can make informed decisions about the valve's suitability for their specific applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, exhausted | Actuation type | Electrical |
Width | 10mm | Standard nominal flow rate | 180l/min |
Pneumatic working port | M5 | Operating voltage | 24V DC |
Operating pressure | 3bar 8bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 4mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991036 |
Valve position ID | Label holder | Lap | Overlap |
Switching time off | 20ms | On switching time | 16ms |
Duty cycle | 100% in combination with holding current reduction | Max. positive test pulse with 0 signal | 1200μs |
Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Ambient temperature | -5°C 50°C | Electrical connection | 2-pin |
Type of mounting | With through-hole | Pilot exhaust air port 82 | M3 |
Pilot exhaust air port 84 | M3 | Pilot air port 12 | M3 |
Pilot air port 14 | M3 | Pneumatic connection 1 | M5 |
Pneumatic connection 2 | M5 | Pneumatic connection 3 | M7 |
Pneumatic connection 4 | M5 | Pneumatic connection 5 | M7 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 533161 |
Specifications may be subject to change without notice
