Product Model

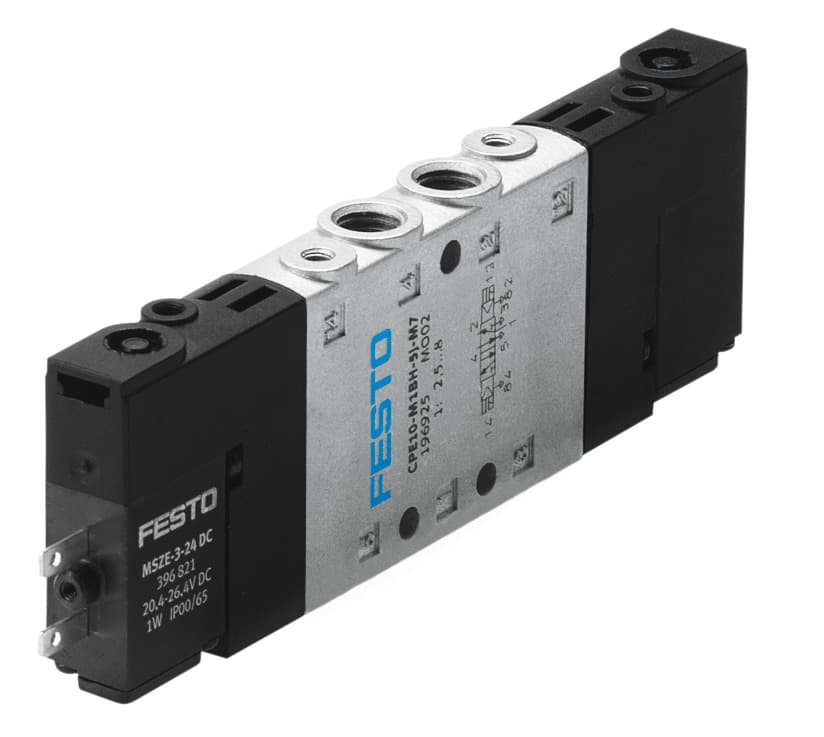

cpe10-m1bh-5j-m7
Selling Points
- 1The Festo CPE10-M1BH-5J-M7 air solenoid valve is designed for precise control and reliable operation, featuring a 5/2 bistable valve function and electrical actuation.
- 2With a standard nominal flow rate of 350 l/min and a pneumatic working port of M7, this valve ensures efficient airflow and compatibility with various pneumatic systems.
- 3The valve operates within a wide temperature range of -5°C to 50°C and has a degree of protection of IP65, making it suitable for various industrial environments.
- 4The CPE10-M1BH-5J-M7 is constructed with die-cast aluminum housing and NBR seals, ensuring durability and resistance to moderate corrosion stress.
- 5This air solenoid valve is compatible with compressed air as per ISO 8573-1:2010 [7:4:4] and can operate with oil lubrication, making it versatile for different applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Width | 10mm | Standard nominal flow rate | 350l/min |
Pneumatic working port | M7 | Operating voltage | 24V DC |
Operating pressure | 2.5bar 8bar | Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
Certificate issuing authority | DNV-TAA000032X UL MH19482 | Degree of protection | IP65 With plug socket as per IEC 60529 |
Nominal width | 4mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991013 | Valve position ID | Label holder |
Lap | Overlap | Changeover time | 8ms |
Duty cycle | 100% in combination with holding current reduction | Max. positive test pulse with 0 signal | 1200μs |
Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Ambient temperature | -5°C 50°C | Product weight | 68g |
Electrical connection | 2-pin | Type of mounting | With through-hole |
Pilot exhaust air port 82 | M3 | Pilot exhaust air port 84 | M3 |
Pilot air port 12 | M3 | Pilot air port 14 | M3 |
Pneumatic connection 1 | M7 | Pneumatic connection 2 | M7 |
Pneumatic connection 3 | M7 | Pneumatic connection 4 | M7 |
Pneumatic connection 5 | M7 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 196925 |
Specifications may be subject to change without notice
