Product Model

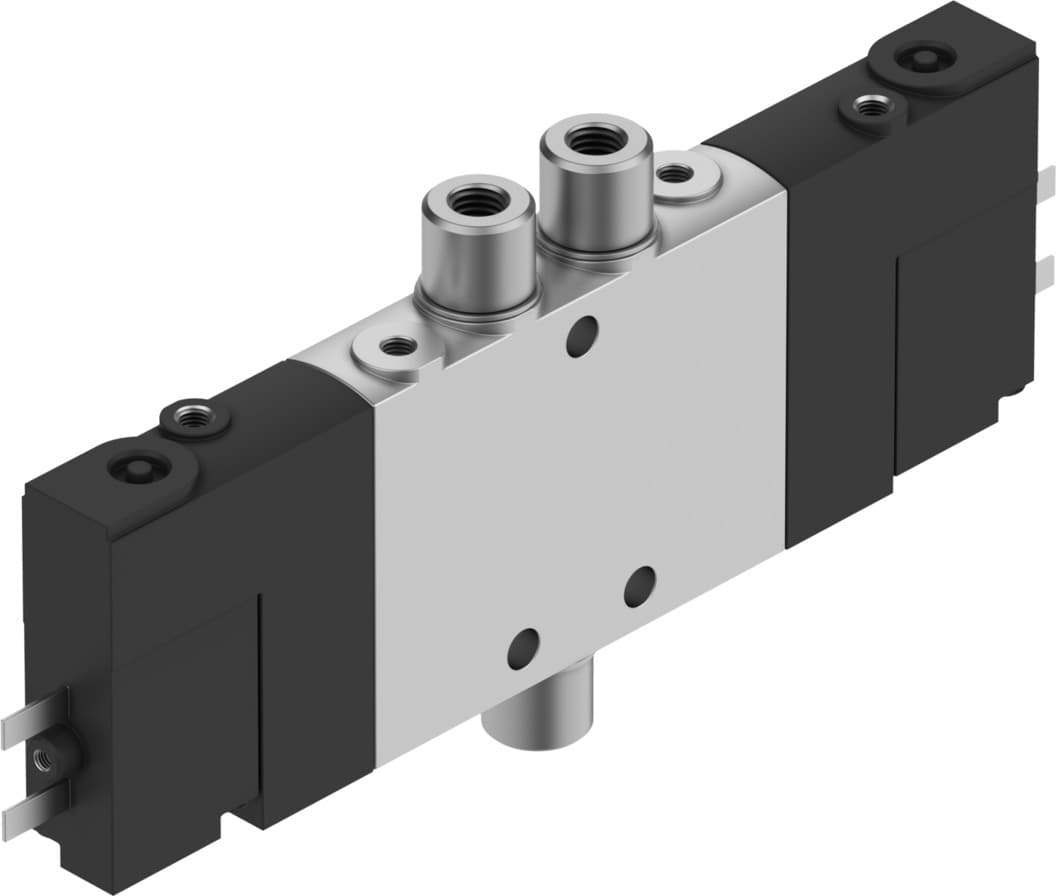

cpe10-m1bh-5js-m5
Selling Points
- 1High Flow Rate: The CPE10-M1BH-5JS-M5 solenoid valve offers a standard nominal flow rate of 180 liters per minute, ensuring efficient air control in various applications.
- 2Bistable Operation: This valve operates in a bistable mode, allowing for reliable and consistent control of pneumatic systems with minimal changeover time.
- 3Robust Construction: Built with a 10 mm width and designed for operating pressures up to 10 bar, the CPE10-M1BH-5JS-M5 is engineered for durability and long-lasting performance.
- 4Electrical Actuation: The valve is actuated electrically, providing precise control with a 24V DC operating voltage and 1.28W coil characteristics.
- 5Versatile Mounting Options: With a through-hole mounting type and compatibility with various pneumatic connections, the CPE10-M1BH-5JS-M5 offers flexible installation options for diverse applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Width | 10mm | Standard nominal flow rate | 180l/min |
Pneumatic working port | M5 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
Certificate issuing authority | DNV-TAA000032X UL MH19482 | Degree of protection | IP65 With plug socket as per IEC 60529 |
Nominal width | 4mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |
Symbol | 00991016 | Valve position ID | Label holder |
Lap | Overlap | Pilot pressure MPa | 0.25MPa 0.8MPa |
Pilot pressure | 2.5bar 8bar | Changeover time | 8ms |
Duty cycle | 100% in combination with holding current reduction | Max. positive test pulse with 0 signal | 1200μs |
Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Electrical connection | 2-pin | Type of mounting | With through-hole |
Pilot exhaust air port 82 | M3 | Pilot exhaust air port 84 | M3 |
Pilot air port 12 | M3 | Pilot air port 14 | M3 |
Pneumatic connection 1 | M5 | Pneumatic connection 2 | M5 |
Pneumatic connection 3 | M7 | Pneumatic connection 4 | M5 |
Pneumatic connection 5 | M7 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 196878 |
Specifications may be subject to change without notice
