Product Model

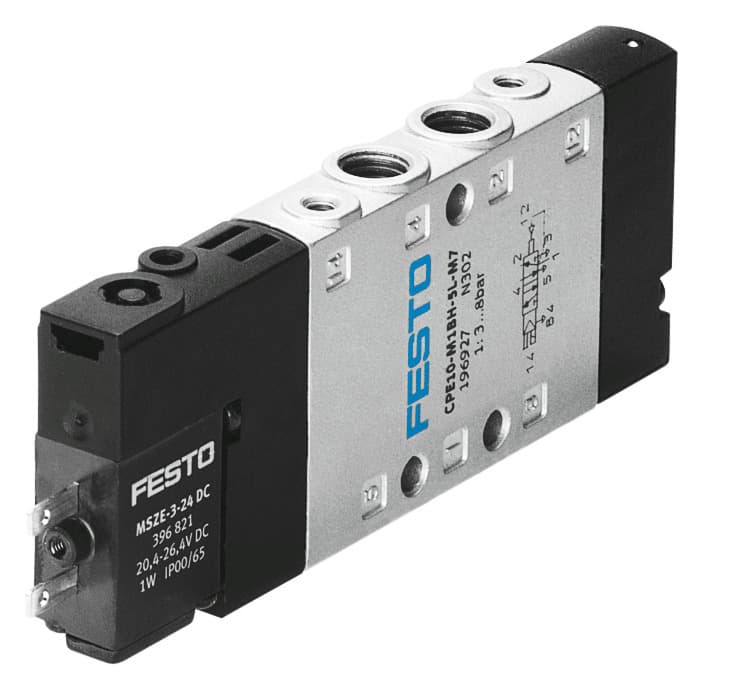

cpe10-m1bh-5ls-m7
Selling Points
- 1The Festo CPE10-M1BH-5LS-M7 is a 5/2-way, monostable air solenoid valve designed for electric actuation, offering a standard nominal flow rate of 350 l/min and a pneumatic working port of M7.
- 2This valve operates within a wide range of pressures, from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), and features a soft sealing principle for reliable performance.
- 3The CPE10-M1BH-5LS-M7 is certified for use in various environments, including maritime classification, and meets IP65 protection standards with a plug socket.
- 4With a compact design width of 10 mm and a nominal width of 4 mm, this valve is suitable for a variety of industrial applications, including those requiring reversible flow direction.
- 5The valve's electrical connection is a 2-pin setup, and it supports lubricated operation, ensuring long service life and minimal energy requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 10mm | Standard nominal flow rate | 350l/min |
Pneumatic working port | M7 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 4mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |
Flow direction | Reversible | Symbol | 00991026 |
Valve position ID | Label holder | Lap | Overlap |
Pilot pressure MPa | 0.3MPa 0.8MPa | Pilot pressure | 3bar 8bar |
Switching time off | 20ms | On switching time | 16ms |
Duty cycle | 100% in combination with holding current reduction | Max. positive test pulse with 0 signal | 1200μs |
Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Product weight | 56g | Electrical connection | 2-pin |
Type of mounting | With through-hole | Pilot exhaust air port 82 | M3 |
Pilot exhaust air port 84 | M3 | Pilot air port 12 | M3 |
Pilot air port 14 | M3 | Pneumatic connection 1 | M7 |
Pneumatic connection 2 | M7 | Pneumatic connection 3 | M7 |
Pneumatic connection 4 | M7 | Pneumatic connection 5 | M7 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 196928 |
Specifications may be subject to change without notice
