Product Model
cpe10-m1bh-5ls-qs-6
Selling Points

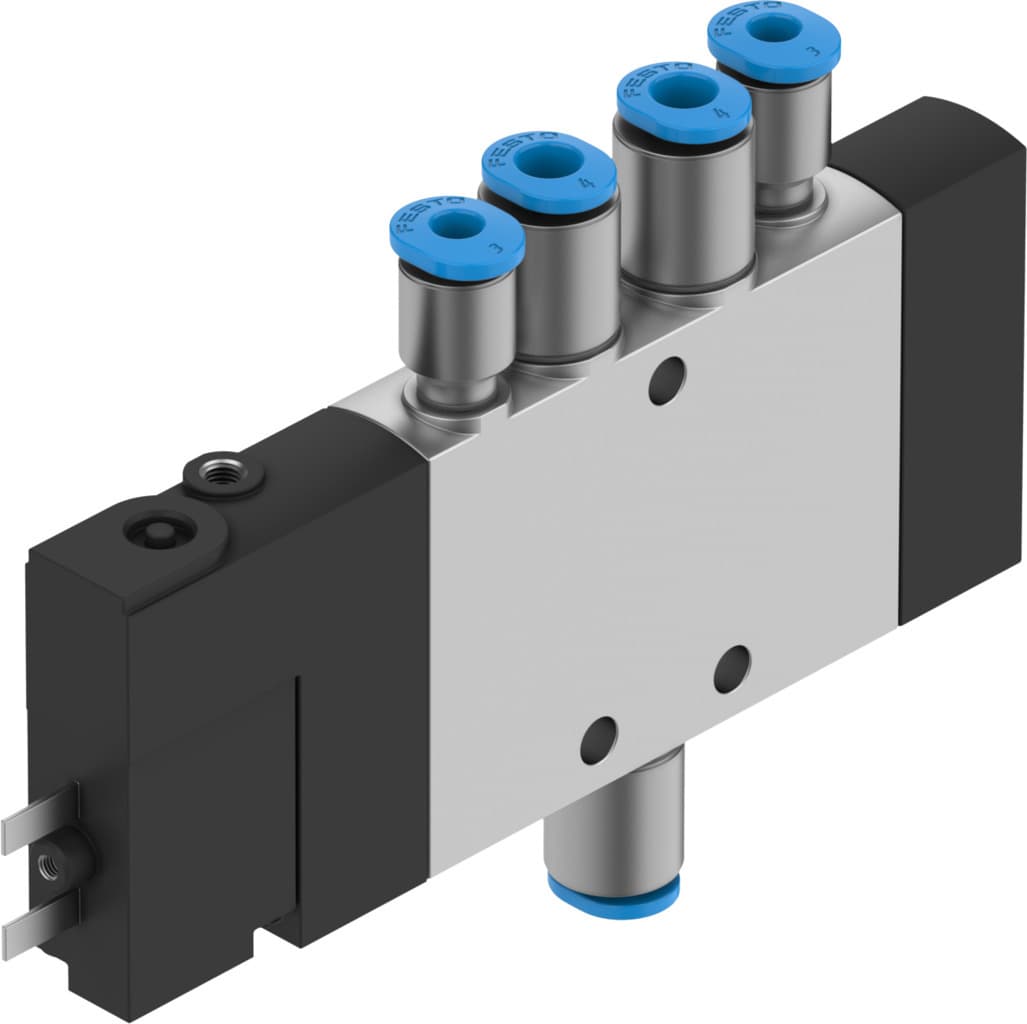

- 1The Festo CPE10-M1BH-5LS-QS-6 solenoid valve is designed for electric actuation, ensuring reliable and efficient control in various industrial applications.
- 2With a nominal flow rate of 320 liters per minute, this valve is ideal for high-demand systems requiring precise fluid management.
- 3The valve operates within a wide temperature range of -5 to 50 degrees Celsius, making it suitable for diverse environmental conditions.
- 4Equipped with a 2-pin electrical connection, the Festo CPE10-M1BH-5LS-QS-6 offers easy integration into existing control systems.
- 5The reversible flow direction and non-detenting manual override feature enhance the valve's versatility and user-friendly operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 10mm | Standard nominal flow rate | 320l/min |
Pneumatic working port | QS-6 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 4mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |
Flow direction | Reversible | Symbol | 00991026 |
Valve position ID | Label holder | Lap | Overlap |
Pilot pressure MPa | 0.3MPa 0.8MPa | Pilot pressure | 3bar 8bar |
Switching time off | 20ms | On switching time | 16ms |
Duty cycle | 100% in combination with holding current reduction | Max. positive test pulse with 0 signal | 1200μs |
Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Electrical connection | 2-pin | Type of mounting | With through-hole |
Pilot exhaust air port 82 | M3 | Pilot exhaust air port 84 | M3 |
Pilot air port 12 | M3 | Pilot air port 14 | M3 |
Pneumatic connection 1 | QS-6 | Pneumatic connection 2 | QS-6 |
Pneumatic connection 3 | M7 | Pneumatic connection 4 | QS-6 |
Pneumatic connection 5 | M7 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 196886 |
Specifications may be subject to change without notice
