Product Model
cpe10-m1ch-5j-m7
Selling Points

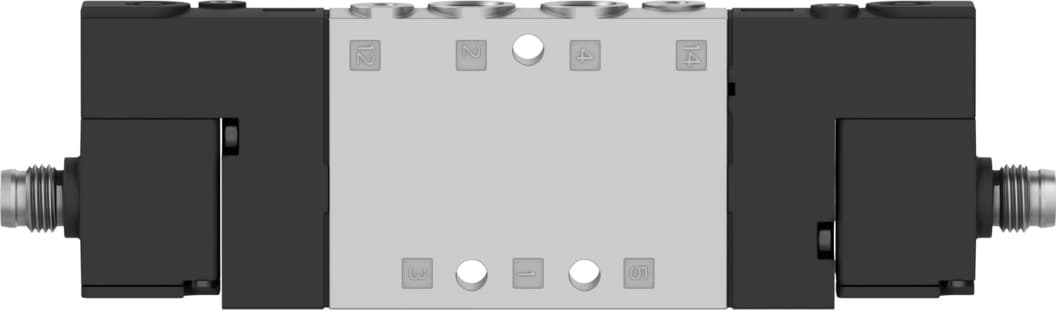

- 1The Festo CPE10-M1CH-5J-M7 Solenoid Valve is a 5/2 double solenoid valve, offering bistable operation with a compact 10mm width and M7 pneumatic connection, making it ideal for space-constrained applications.
- 2This valve operates with compressed air to ISO 8573-1:2010 standards, ensuring reliable performance in various industrial environments. It also supports lubricated operation, which is required in certain applications.
- 3The Festo CPE10-M1CH-5J-M7 Solenoid Valve is designed to withstand moderate corrosion stress and has a high level of vibration and shock resistance, making it suitable for demanding industrial conditions.
- 4With a standard nominal flow rate of 350L/min and an operating pressure of 0.25MPA, this valve provides efficient fluid control in various automation systems. It also features a 24V DC solenoid coil with 1.28W characteristic power consumption.
- 5The valve includes a 4-pin electrical connection with an M8x1 plug and is compatible with internal pilot air supply, enhancing its versatility in different application settings. It also meets RoHS compliance standards for environmentally friendly operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Width | 10mm | Standard nominal flow rate | 350l/min |
Pneumatic working port | M7 | Operating voltage | 24V DC |
Operating pressure | 2.5bar 8bar | Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
Certificate issuing authority | DNV-TAA000032X UL MH19482 | Degree of protection | IP65 IP67 With plug socket as per IEC 60529 |
Nominal width | 4mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991013 | Valve position ID | Label holder |
Lap | Overlap | Changeover time | 8ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 1200μs |
Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Ambient temperature | -5°C 50°C | Max. tightening torque plug | 0.4Nm |
Product weight | 68g | Electrical connection | 4-pin M8x1 |
Type of mounting | With through-hole | Pilot exhaust air port 82 | M3 |
Pilot exhaust air port 84 | M3 | Pilot air port 12 | M3 |
Pilot air port 14 | M3 | Pneumatic connection 1 | M7 |
Pneumatic connection 2 | M7 | Pneumatic connection 3 | M7 |
Pneumatic connection 4 | M7 | Pneumatic connection 5 | M7 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 550225 |
Specifications may be subject to change without notice
