Product Model
cpe10-prs-1/4-3-npt
Selling Points

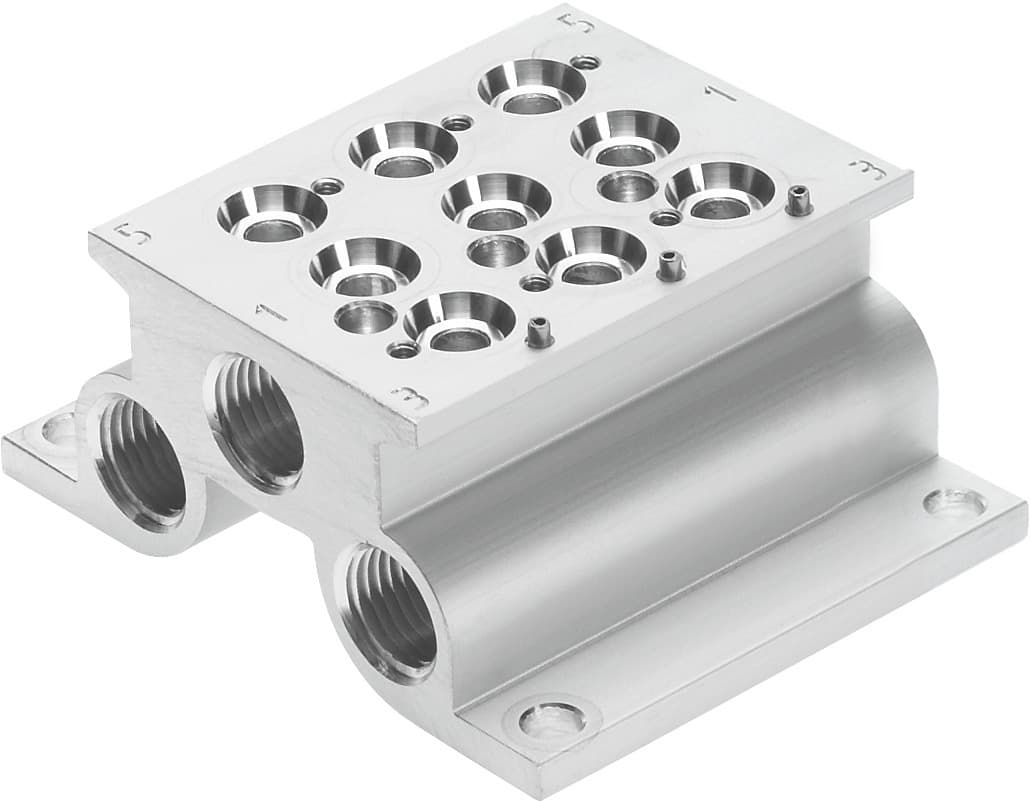

- 1The Festo CPE10-PRS-1/4-3-NPT offers a compact, fixed-grid manifold block ideal for 3 valve positions, ensuring space efficiency in your automation setup.
- 2Equipped with 3 x 1/4" NPT threaded (female) pneumatic connections, this manifold provides reliable and precise connections for your pneumatic systems.
- 3Suitable for a variety of applications, the CPE10-PRS-1/4-3-NPT is perfect for use in industrial automation, ensuring flexibility and adaptability in your manufacturing processes.
- 4Designed for straightforward installation, this manifold block minimizes setup time and effort, allowing you to get back to work quickly and efficiently.
- 5Built with the renowned quality and reliability of Festo, the CPE10-PRS-1/4-3-NPT ensures that your automation system operates at its best, providing consistent performance and minimal downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 16mm | Mounting position | Any |
Max. no. of valve positions | 3 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 1.22Nm | Product weight | 177.613g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 3 | 1/4 NPT |
Pneumatic connection 5 | 1/4 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550071 |
Specifications may be subject to change without notice
