Product Model
cpe10-prs-1/4-5-npt
Selling Points

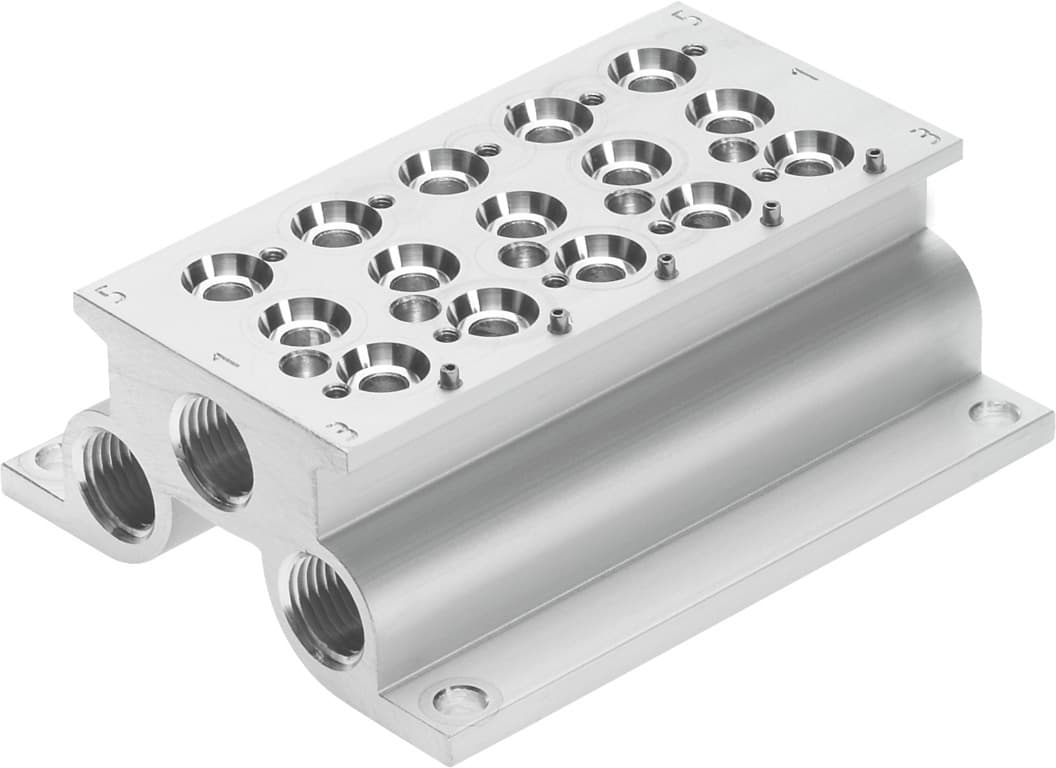

- 1The CPE10-PRS-1/4-5-NPT is a fixed-grid manifold block designed for 5 valve positions, providing a compact and efficient solution for pneumatic systems.
- 2Equipped with 3 x 1/4" NPT threaded female pneumatic connections, this manifold block ensures secure and reliable connections in various industrial applications.
- 3Manufactured by Festo, a leading brand in pneumatic components, the CPE10-PRS-1/4-5-NPT offers high-quality performance and durability.
- 4This manifold block is part of the CPE series, known for its versatility and compatibility with a wide range of Festo pneumatic components.
- 5Ideal for use in various industrial settings, the CPE10-PRS-1/4-5-NPT ensures efficient connection and distribution of compressed air, making it a valuable addition to any pneumatic system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 16mm | Mounting position | Any |
Max. no. of valve positions | 5 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 1.22Nm | Product weight | 272.869g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 3 | 1/4 NPT |
Pneumatic connection 5 | 1/4 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550073 |
Specifications may be subject to change without notice
