Product Model
cpe10-prs-1/4-6-npt
Selling Points

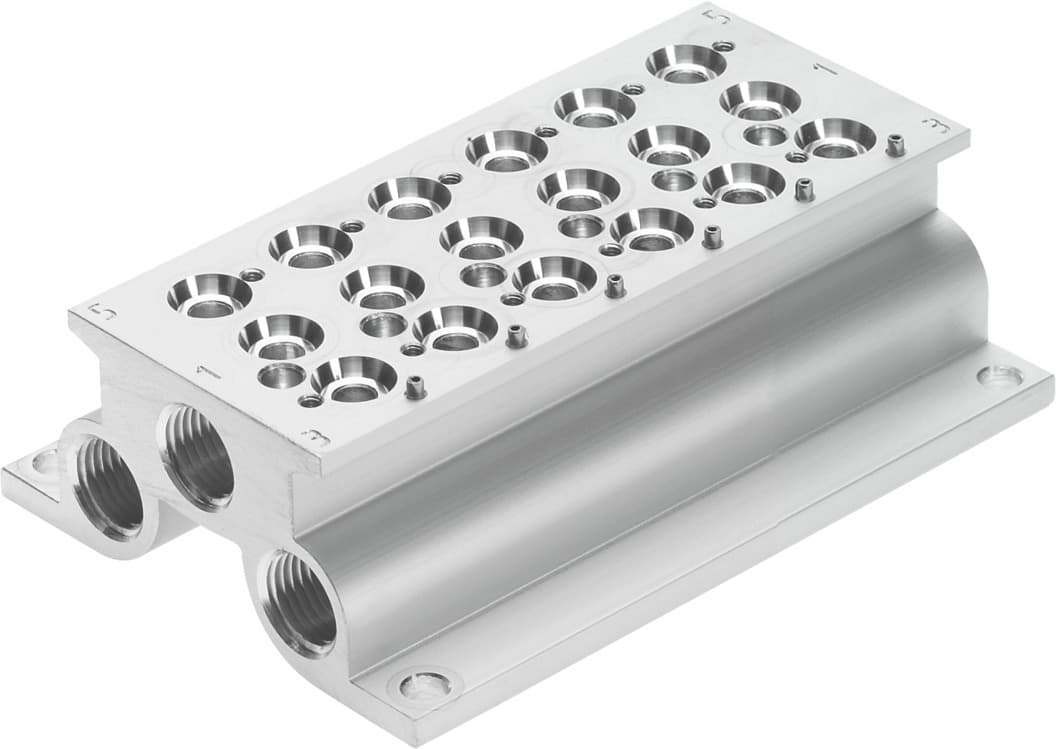

- 1The Festo CPE10-PRS-1/4-6-NPT is a versatile pneumatic manifold block designed to support up to six stations, making it suitable for various industrial automation applications.
- 2This manifold block features 1/4 NPT female connections, ensuring reliable and efficient pneumatic control in your manufacturing processes.
- 3The CPE10-PRS-1/4-6-NPT is engineered to protect products from moisture and prevent mold and mildew growth, ensuring longevity and reliability in harsh environments.
- 4With its bulk packaging method, the Festo CPE10-PRS-1/4-6-NPT is easy to handle and store, reducing warehousing costs and improving inventory management.
- 5This product is part of Festo's extensive range of pneumatic components, offering a one-stop solution for all your industrial automation needs, from simple tasks to complex applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 16mm | Mounting position | Any |
Max. no. of valve positions | 6 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 1.22Nm | Product weight | 320.497g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 3 | 1/4 NPT |
Pneumatic connection 5 | 1/4 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550074 |
Specifications may be subject to change without notice
