Product Model
cpe10-prs-1/4-7-npt
Selling Points

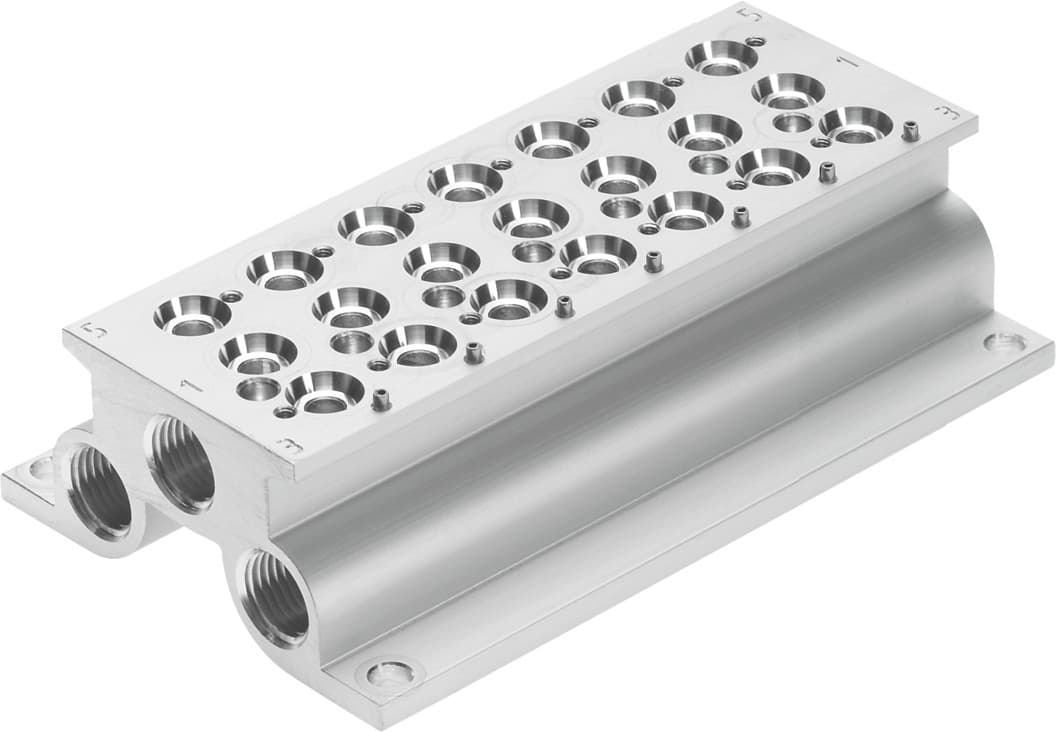

- 1The Festo CPE10-PRS-1/4-7-NPT is a versatile pneumatic manifold block designed to support up to 7 valve positions and 2 pressure zones, making it ideal for complex industrial automation systems.
- 2This manifold block features a grid dimension of 16 mm, allowing for precise and efficient valve positioning. It is compatible with various Festo CPE valves, enhancing system flexibility.
- 3The CPE10-PRS-1/4-7-NPT operates within a working pressure range of -13 to 145 psi, ensuring reliable performance in a variety of industrial environments. It also meets RoHS compliance standards.
- 4The manifold block is constructed with wrought aluminum alloy, providing excellent corrosion resistance and durability. This makes it suitable for applications requiring long-term reliability.
- 5The Festo CPE10-PRS-1/4-7-NPT is part of Festo's comprehensive range of pneumatic components, offering everything from single products to complete solutions for industrial automation applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 16mm | Mounting position | Any |
Max. no. of valve positions | 7 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 1.22Nm | Product weight | 368.125g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 3 | 1/4 NPT |
Pneumatic connection 5 | 1/4 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550075 |
Specifications may be subject to change without notice
