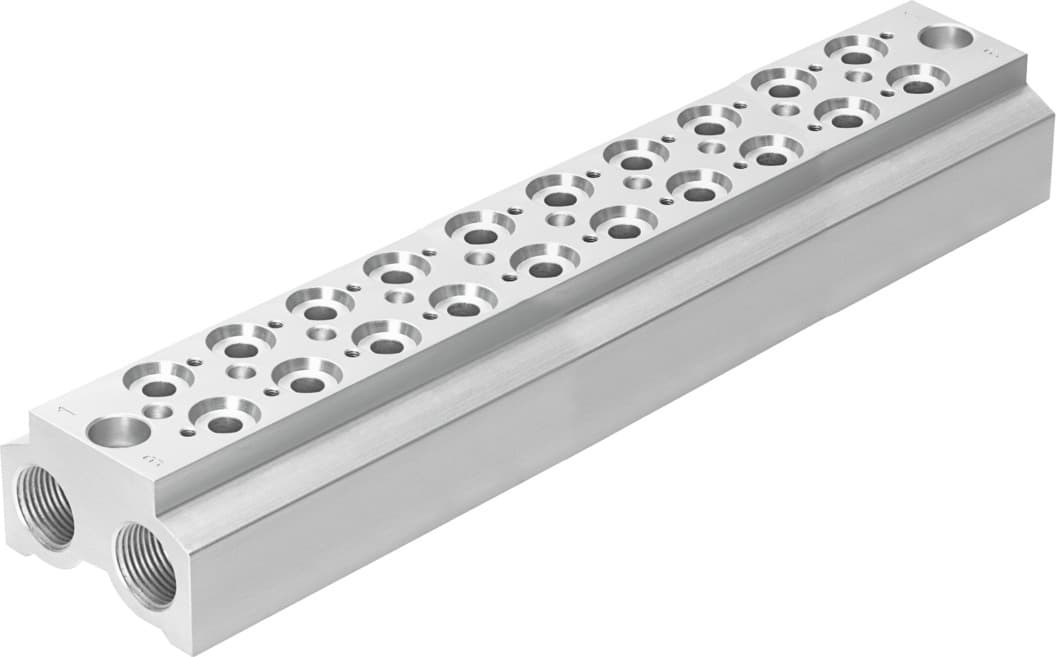

Product Model
cpe14-3/2-prs-3/8-10
Selling Points
- 1The CPE14-3/2-PRS-3/8-10 NPT is a fixed-grid manifold block designed to accommodate up to 10 valve positions, ensuring efficient and organized pneumatic system management.
- 2This manifold block can be assembled in any position, offering flexibility in system design and installation.
- 3It operates within a wide pressure range of -13 to 145 Psi, making it suitable for various industrial applications.
- 4With a corrosion resistance classification of CRC 2, this manifold block is designed to handle moderate corrosion stress, ensuring durability in harsh environments.
- 5Featuring 3 x 3/8" NPT threaded connections, the CPE14-3/2-PRS-3/8-10 NPT makes installation straightforward and secure, reducing setup time and effort.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 20mm | Mounting position | Any |
Max. no. of valve positions | 10 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 1.2Nm | Product weight | 592g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550567 |
Specifications may be subject to change without notice
