Product Model
cpe14-3/2-prs-3/8-7-npt
Selling Points

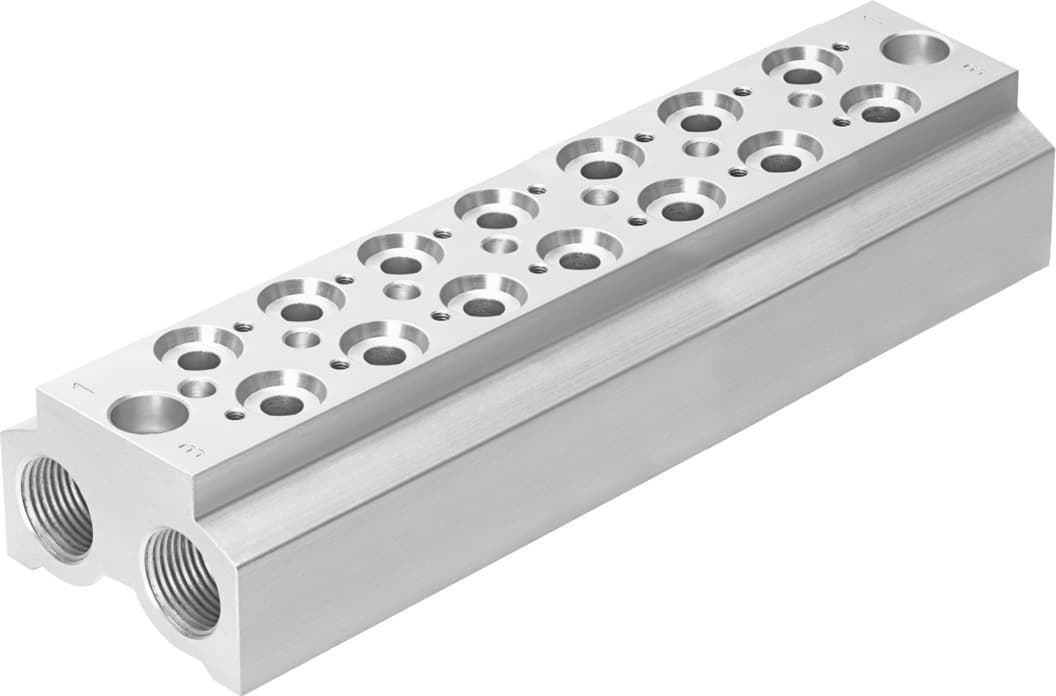

- 1The Festo CPE14-3/2-PRS-3/8-7-NPT pneumatic manifold features 3 x 3/8" NPT threaded connections, ensuring reliable and efficient automation in various industrial settings.
- 2Constructed with a wrought aluminum alloy housing, this manifold offers durability and resistance to corrosion, making it a reliable choice for demanding applications.
- 3With 7 valve positions and 2 pressure zones, the CPE14-3/2-PRS-3/8-7-NPT manifold is versatile and adaptable to a wide range of pneumatic systems, enhancing its usability across different industries.
- 4As part of Festo's extensive product range, the CPE14-3/2-PRS-3/8-7-NPT manifold is available worldwide, ensuring that customers can access the necessary components whenever and wherever they need them.
- 5Festo offers comprehensive support, including product training and after-sales service, ensuring that customers have the necessary expertise and resources to maximize the performance of their pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 20mm | Mounting position | Any |
Max. no. of valve positions | 7 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 1.22Nm | Product weight | 432.621g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
Pneumatic connection 5 | 3/8 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550615 |
Specifications may be subject to change without notice
