Product Model
cpe14-m1bh-3gls-qs-8
Selling Points

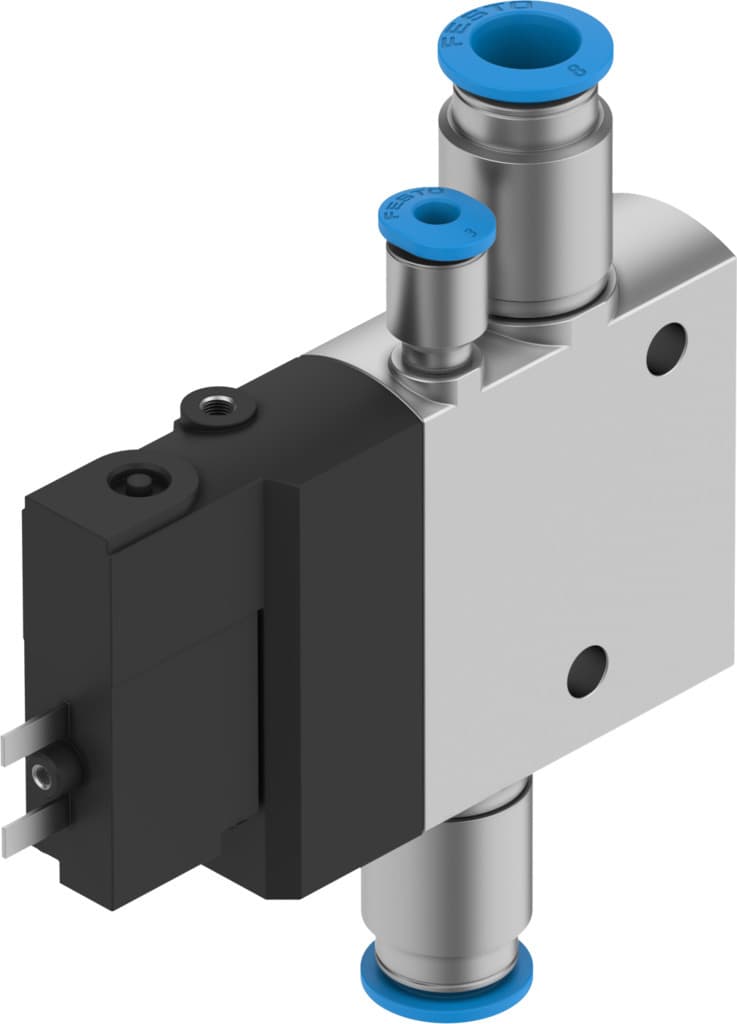

- 1The Festo CPE14-M1BH-3GL-QS-8 solenoid valve offers a 3/2-way, closed, monostable operation, making it suitable for various pneumatic applications.
- 2With a standard nominal flow rate of 810 l/min, this valve is designed to handle high airflow requirements efficiently.
- 3The valve operates at 24V DC, ensuring reliable and consistent performance in a wide range of industrial settings.
- 4The CPE14-M1BH-3GL-QS-8 features a compact design with a construction width of 14 mm, making it ideal for space-constrained applications.
- 5This solenoid valve is designed with a soft mounting principle and offers optional manual override, enhancing its versatility and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 3/2, closed, monostable | Actuation type | Electrical |
Width | 14mm | Standard nominal flow rate | 810l/min |
Pneumatic working port | QS-8 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 6mm |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Non-reversible |
Symbol | 00991405 | Valve position ID | Label holder |
Lap | Overlap | Pilot pressure MPa | 0.25MPa 0.8MPa |
Pilot pressure | 2.5bar 8bar | Switching time off | 27ms |
On switching time | 16ms | Duty cycle | 100% in combination with holding current reduction |
Max. positive test pulse with 0 signal | 1200μs | Max. negative test pulse on 1 signal | 900μs |
Coil characteristics | 24 V DC: 1.28 W | Permissible voltage fluctuations | -15 % / +10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Electrical connection | 2-pin |
Type of mounting | With through-hole | Pilot exhaust air port 82 | M3 |
Pilot air port 12 | M3 | Pneumatic connection 1 | QS-8 |
Pneumatic connection 2 | QS-8 | Pneumatic connection 3 | G1/8 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 196890 |
Specifications may be subject to change without notice
