Product Model

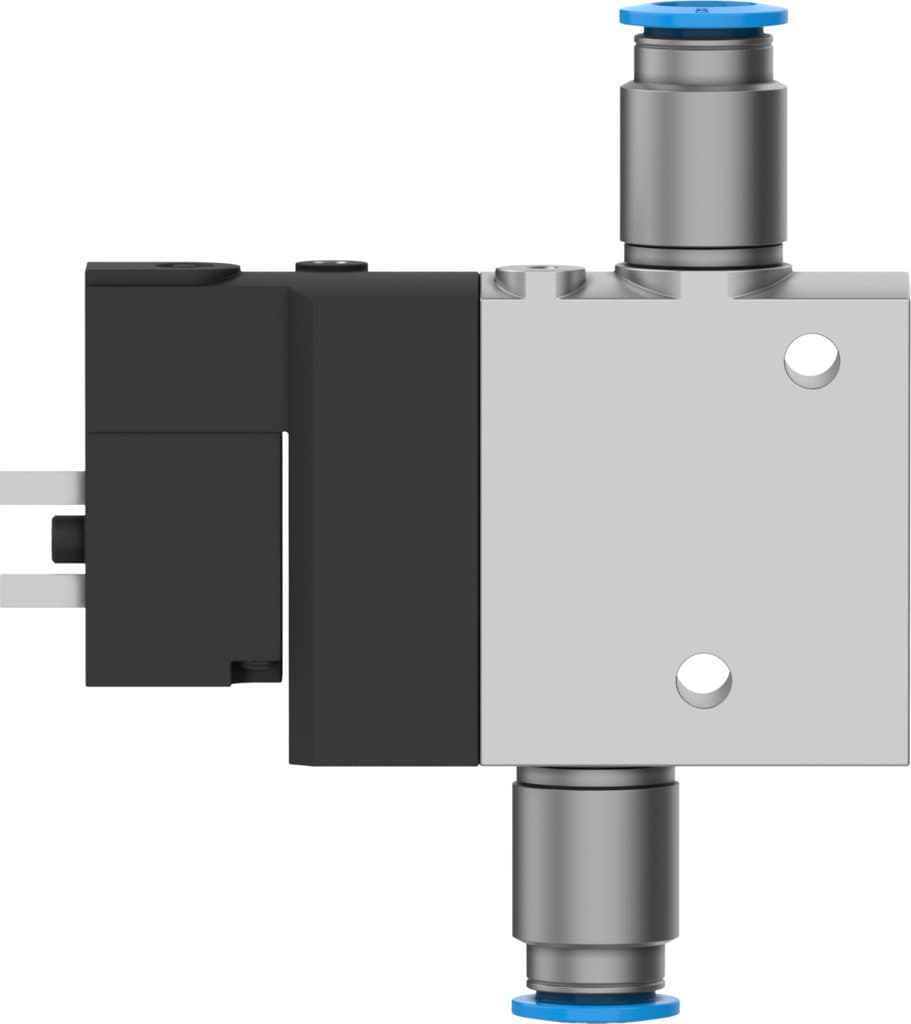

cpe14-m1bh-3ol-qs-8
Selling Points
- 1The Festo CPE14-M1BH-3OL-QS-8 solenoid valve features a high component density design, ensuring compactness and efficiency in industrial automation systems.
- 2This valve operates with a 3/2 open monostable function, providing reliable and precise control over fluid flow in various industrial applications.
- 3The valve is actuated electrically, offering easy integration with control systems and minimizing the need for manual intervention.
- 4With a standard nominal flow rate of 810 l/min, the CPE14-M1BH-3OL-QS-8 is suitable for applications requiring high fluid flow rates.
- 5Built with durable materials and designed for operating pressures of 2.5 to 8 bar, this valve ensures long-lasting performance in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 3/2, open, monostable | Actuation type | Electrical |
Width | 14mm | Standard nominal flow rate | 810l/min |
Pneumatic working port | QS-8 | Operating voltage | 24V DC |
Operating pressure | 2.5bar 8bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 6mm |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991656 | Valve position ID | Label holder |
Lap | Overlap | Switching time off | 27ms |
On switching time | 16ms | Duty cycle | 100% in combination with holding current reduction |
Max. positive test pulse with 0 signal | 1200μs | Max. negative test pulse on 1 signal | 900μs |
Coil characteristics | 24 V DC: 1.28 W | Permissible voltage fluctuations | -15 % / +10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Electrical connection | 2-pin | Type of mounting | With through-hole |
Pilot exhaust air port 82 | M3 | Pilot air port 12 | M3 |
Pneumatic connection 1 | QS-8 | Pneumatic connection 2 | QS-8 |
Pneumatic connection 3 | G1/8 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 196892 |
Specifications may be subject to change without notice
