Product Model
cpe14-m1bh-5/3e-qs-8
Selling Points

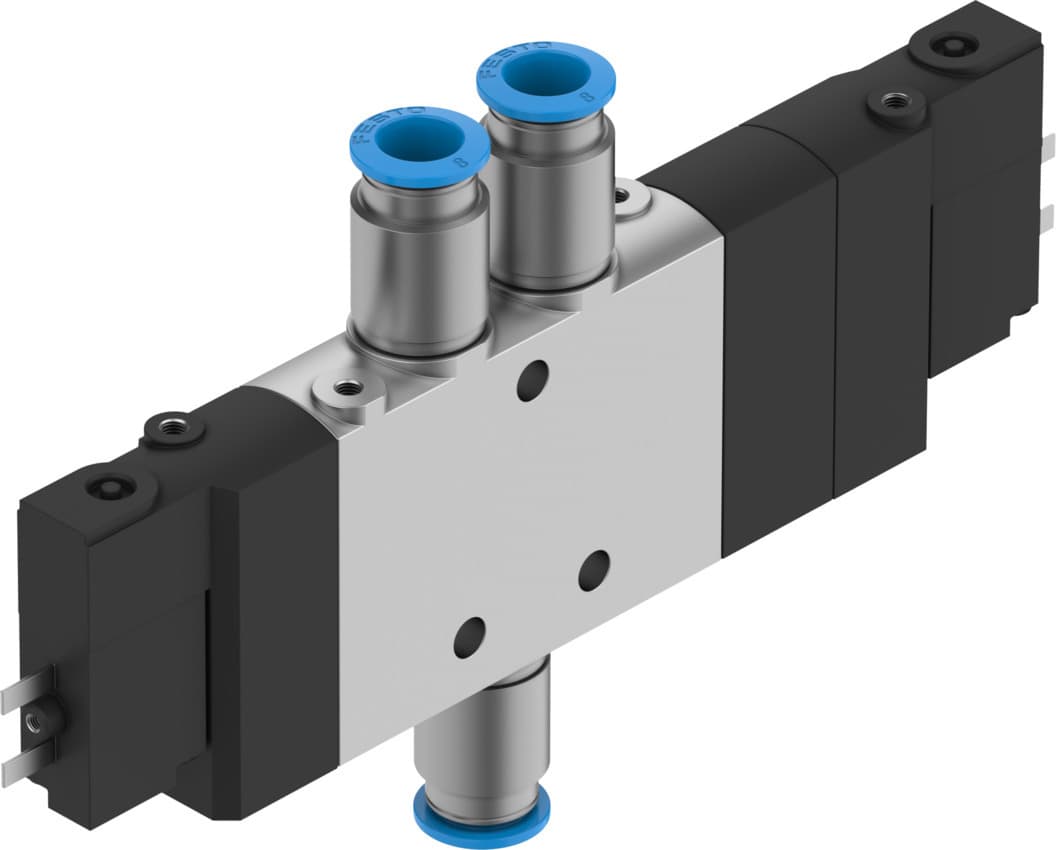

- 1The Festo CPE14-M1BH-5/3E-QS-8 solenoid valve offers a 5/3 exhausted valve function, ensuring efficient control and flow management in pneumatic systems.
- 2With an electrical actuation type and a compact width of 14 mm, this valve is ideal for space-constrained applications while maintaining high performance.
- 3The standard nominal flow rate is 570 l/min, making it suitable for a wide range of pneumatic applications, from small to medium-sized systems.
- 4The valve operates within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), providing flexibility in various industrial settings.
- 5The Festo CPE14-M1BH-5/3E-QS-8 features a mechanical spring reset method and is certified to UL standards, ensuring reliability and safety in maritime and industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, exhausted | Actuation type | Electrical |
Width | 14mm | Standard nominal flow rate | 570l/min |
Pneumatic working port | QS-8 | Operating voltage | 24V DC |
Operating pressure | 3bar 8bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 6mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991036 |
Valve position ID | Label holder | Lap | Overlap |
Switching time off | 42ms | On switching time | 20ms |
Duty cycle | 100% in combination with holding current reduction | Max. positive test pulse with 0 signal | 1200μs |
Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Ambient temperature | -5°C 50°C | Electrical connection | 2-pin |
Type of mounting | With through-hole | Pilot exhaust air port 82 | M3 |
Pilot exhaust air port 84 | M3 | Pilot air port 12 | M3 |
Pilot air port 14 | M3 | Pneumatic connection 1 | QS-8 |
Pneumatic connection 2 | QS-8 | Pneumatic connection 3 | G1/8 |
Pneumatic connection 4 | QS-8 | Pneumatic connection 5 | G1/8 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 196900 |
Specifications may be subject to change without notice
