Product Model

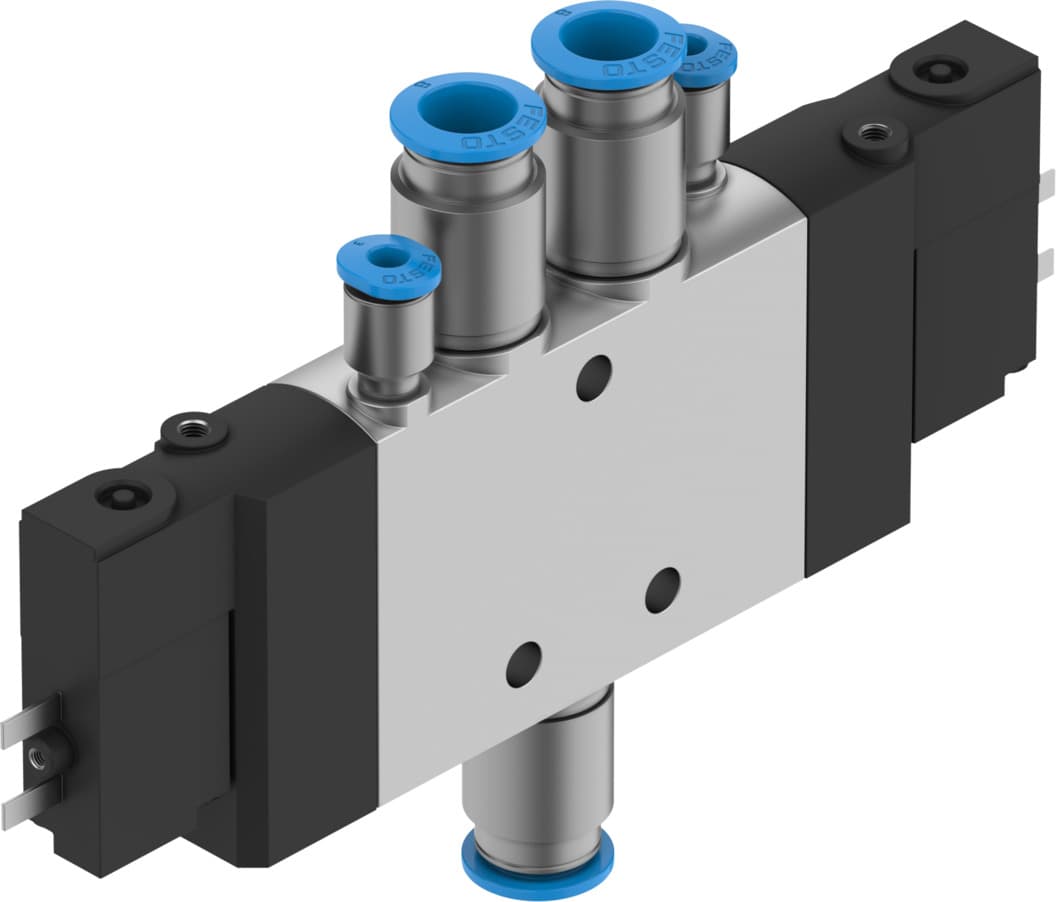

cpe14-m1bh-5js-qs-8
Selling Points
- 1The Festo CPE14-M1BH-5JS-1/8 solenoid valve is a 5/2 double solenoid valve, ensuring precise control and reliable operation in various industrial applications.
- 2With a standard nominal flow rate of 800 l/min, this valve provides efficient pneumatic control, making it suitable for a wide range of manufacturing processes.
- 3The valve features a compact 14 mm construction width and is designed with a piston gate valve, offering robustness and durability in harsh environments.
- 4The CPE14-M1BH-5JS-1/8 solenoid valve is certified for maritime classification and has IP65 degree of protection, ensuring it can withstand challenging industrial conditions.
- 5This valve is designed for external pilot air supply and features soft sealing principles, ensuring minimal leakage and optimal performance over time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Width | 14mm | Standard nominal flow rate | 680l/min |
Pneumatic working port | QS-8 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
Certificate issuing authority | DNV-TAA000032X UL MH19482 | Degree of protection | IP65 With plug socket as per IEC 60529 |
Nominal width | 6mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |
Symbol | 00991016 | Valve position ID | Label holder |
Lap | Overlap | Pilot pressure MPa | 0.2MPa 0.8MPa |
Pilot pressure | 2bar 8bar | Changeover time | 13ms |
Duty cycle | 100% in combination with holding current reduction | Max. positive test pulse with 0 signal | 1200μs |
Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Electrical connection | 2-pin | Type of mounting | With through-hole |
Pilot exhaust air port 82 | M3 | Pilot exhaust air port 84 | M3 |
Pilot air port 12 | M3 | Pilot air port 14 | M3 |
Pneumatic connection 1 | QS-8 | Pneumatic connection 2 | QS-8 |
Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | QS-8 |
Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 196910 |
Specifications may be subject to change without notice
