Product Model

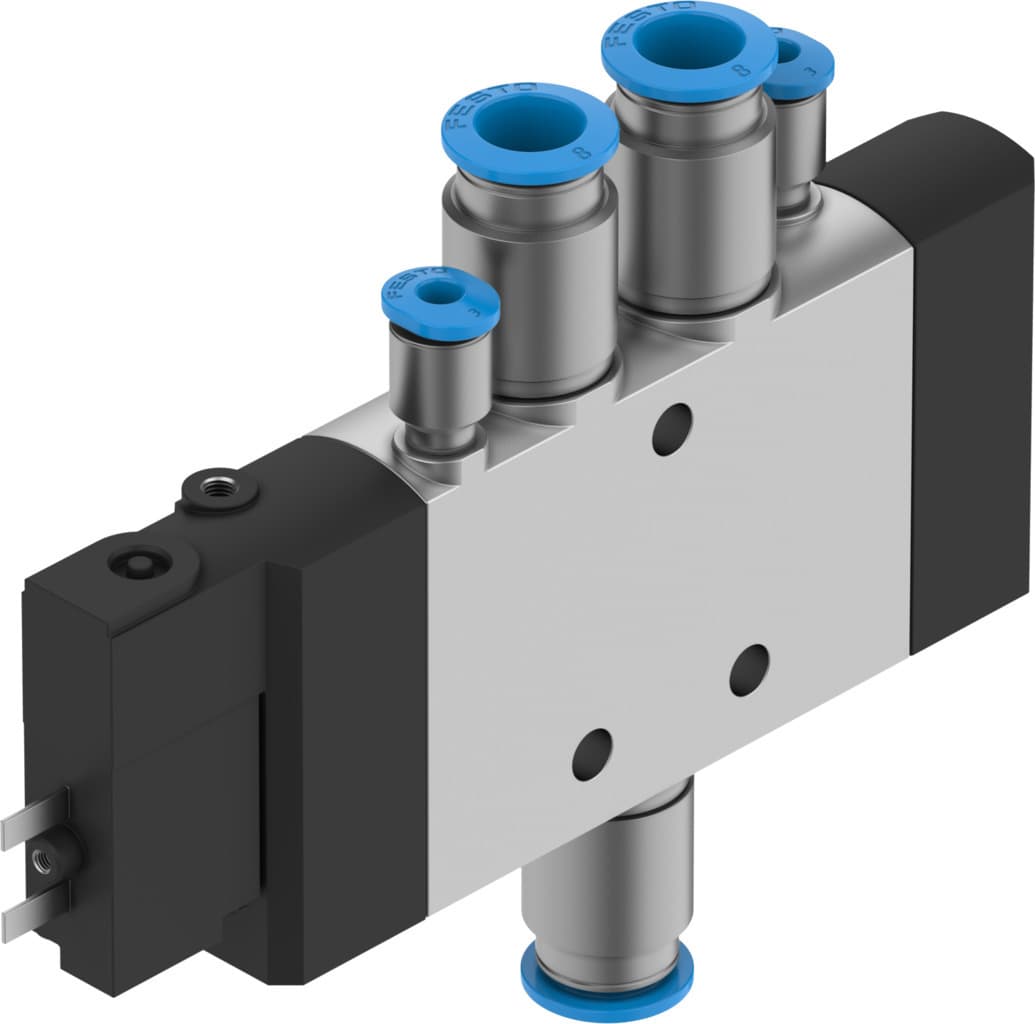

cpe14-m1bh-5ls-qs-8
Selling Points
- 1The CPE14-M1BH-5LS-QS-8 solenoid valve features a standard nominal flow rate of 680 liters per minute, making it suitable for high-demand applications.
- 2This valve is electrically actuated, ensuring precise control and efficient operation with an operating voltage of 24V DC.
- 3Constructed with die-cast aluminum housing and NBR seals, the CPE14-M1BH-5LS-QS-8 is designed for durability and long-lasting performance.
- 4Equipped with a pneumatic working port QS-8, this valve can handle operating pressures from -0.09 MPa to 1 MPa, making it versatile for various industrial settings.
- 5The CPE14-M1BH-5LS-QS-8 is certified by UL and recognized for maritime classification, ensuring it meets stringent safety and performance standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 14mm | Standard nominal flow rate | 680l/min |
Pneumatic working port | QS-8 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 6mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |
Flow direction | Reversible | Symbol | 00991026 |
Valve position ID | Label holder | Lap | Overlap |
Pilot pressure MPa | 0.3MPa 0.8MPa | Pilot pressure | 3bar 8bar |
Switching time off | 32ms | On switching time | 24ms |
Duty cycle | 100% in combination with holding current reduction | Max. positive test pulse with 0 signal | 1200μs |
Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Electrical connection | 2-pin | Type of mounting | With through-hole |
Pilot exhaust air port 82 | M3 | Pilot exhaust air port 84 | M3 |
Pilot air port 12 | M3 | Pilot air port 14 | M3 |
Pneumatic connection 1 | QS-8 | Pneumatic connection 2 | QS-8 |
Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | QS-8 |
Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 196914 |
Specifications may be subject to change without notice
