Product Model

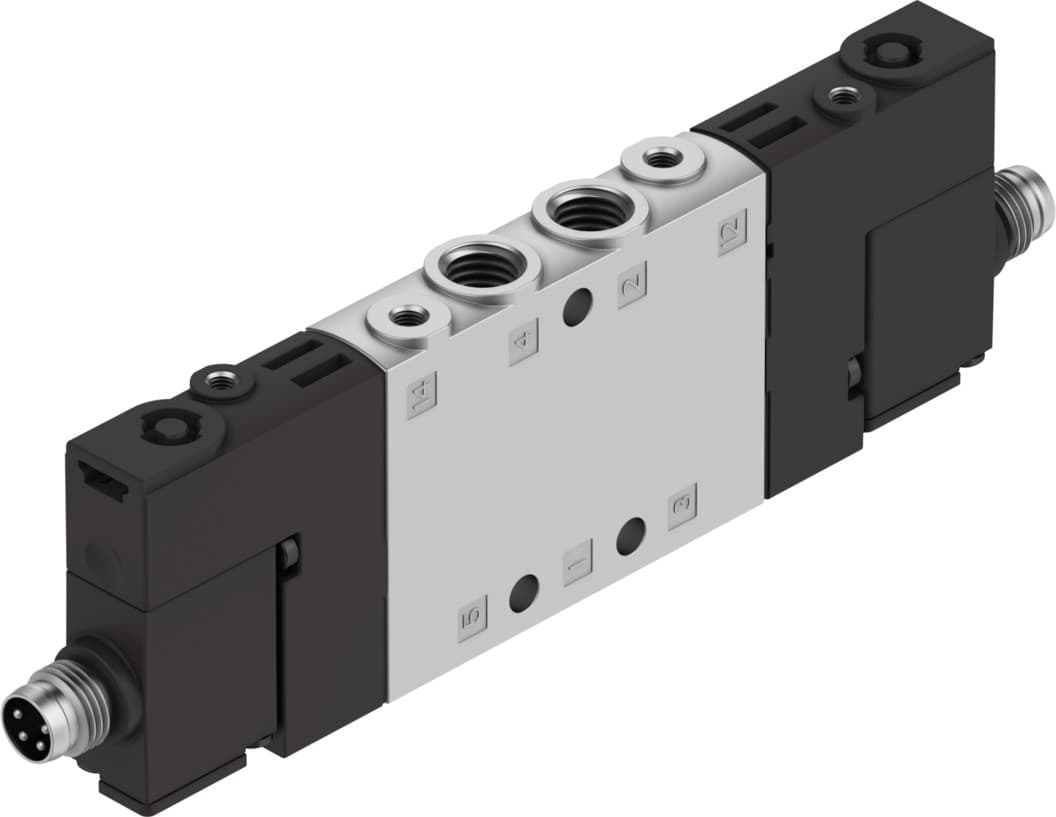

cpe14-m1ch-5/3bs-1/8
Selling Points
- 1The Festo CPE14-M1CH-5/3BS-1/8 solenoid valve offers a 5/3 vented valve function, ensuring efficient control and flow management in various industrial applications.
- 2This valve is electrically actuated, providing precise control and reliability with a 24V DC operating voltage and 1.28W characteristic coil data.
- 3With a 14mm construction width and a nominal size of 6mm, this valve is designed for durability and can operate within a temperature range of -5°C to 50°C.
- 4The valve features a soft sealing principle, ensuring minimal leakage and optimal performance. It also supports lubricated operation for enhanced durability.
- 5The valve is protected by IP65 and IP67 ratings, making it suitable for harsh industrial environments. It also meets maritime classification standards and has a moderate corrosion resistance class (CRC 2).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, pressurized | Actuation type | Electrical |
Width | 14mm | Standard nominal flow rate | 750l/min |
Pneumatic working port | G1/8 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
Degree of protection | IP65 IP67 With plug socket as per IEC 60529 | Nominal width | 6mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |
Flow direction | Reversible | Symbol | 00991031 |
Valve position ID | Label holder | Lap | Overlap |
Pilot pressure MPa | 0.3MPa 0.8MPa | Pilot pressure | 3bar 8bar |
Switching time off | 42ms | On switching time | 20ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 1200μs |
Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Max. tightening torque plug | 0.4Nm | Product weight | 120g |
Electrical connection | 4-pin M8x1 | Type of mounting | With through-hole |
Pilot exhaust air port 82 | M3 | Pilot exhaust air port 84 | M3 |
Pilot air port 12 | M3 | Pilot air port 14 | M3 |
Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | G1/8 |
Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | G1/8 |
Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 550246 |
Specifications may be subject to change without notice
