Product Model

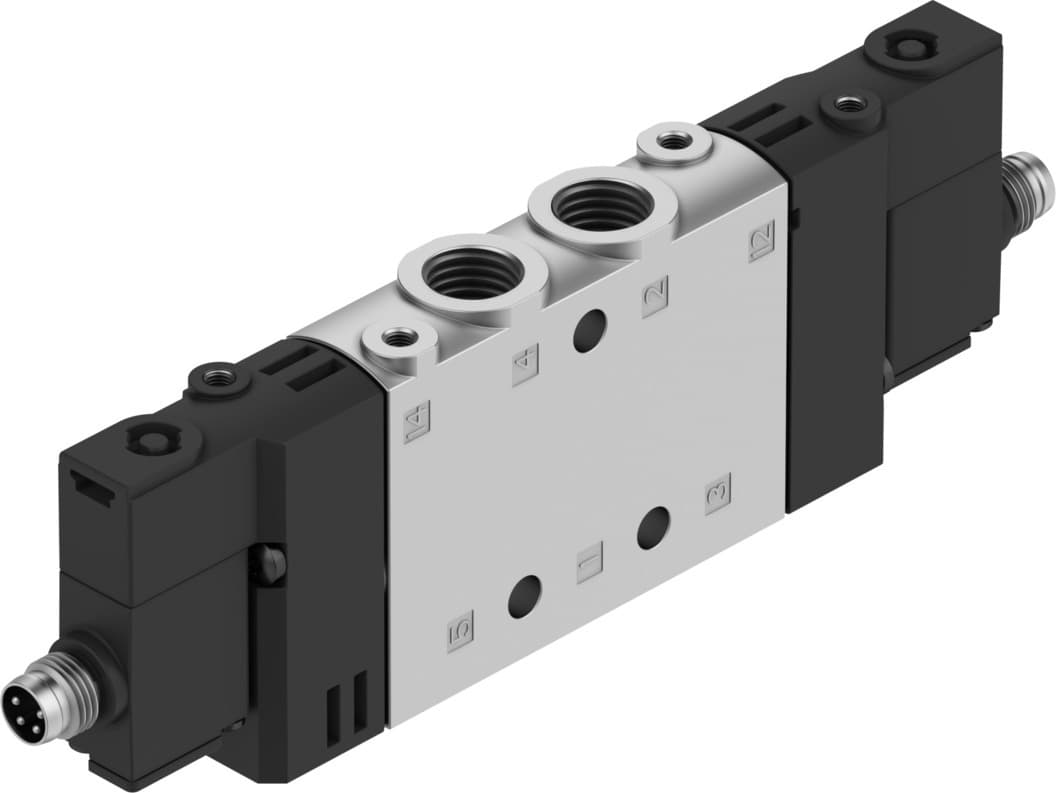

cpe14-m1ch-5js-1/8
Selling Points
- 1Compact Design and High Flow Rate: The Festo CPE14-M1CH-5JS-1/8 solenoid valve features a compact 14 mm width with a standard nominal flow rate of 800 l/min, making it ideal for applications requiring efficient fluid control.
- 2Bistable Operation: This valve operates in a bistable mode, allowing it to remain in its switching position even after signal switch-off. This feature ensures consistent performance and reliability in various industrial settings.
- 3Electrical Actuation: The valve is actuated electrically, providing precise control over its operation. It supports an operating voltage of 24V DC and is designed to withstand voltage fluctuations of up to 10%.
- 4Robust Construction: Built with a die-cast aluminum housing and using NBR seals, the valve offers robust construction and resistance to corrosion. It also meets IP65 and IP67 protection standards, ensuring durability in harsh environments.
- 5Versatile Mounting Options: The valve can be mounted in any position, offering flexibility in system design. It also includes manual override options with detenting accessories, enhancing its usability in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Width | 14mm | Standard nominal flow rate | 800l/min |
Pneumatic working port | G1/8 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
Certificate issuing authority | DNV-TAA000032X UL MH19482 | Degree of protection | IP65 IP67 With plug socket as per IEC 60529 |
Nominal width | 6mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |
Symbol | 00991016 | Valve position ID | Label holder |
Lap | Overlap | Pilot pressure MPa | 0.2MPa 0.8MPa |
Pilot pressure | 2bar 8bar | Changeover time | 12ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 1200μs |
Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Max. tightening torque plug | 0.4Nm | Product weight | 115g |
Electrical connection | 4-pin M8x1 | Type of mounting | With through-hole |
Pilot exhaust air port 82 | M3 | Pilot exhaust air port 84 | M3 |
Pilot air port 12 | M3 | Pilot air port 14 | M3 |
Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | G1/8 |
Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | G1/8 |
Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 550240 |
Specifications may be subject to change without notice
