Product Model
cpe14-prs-3/8-10-npt
Selling Points

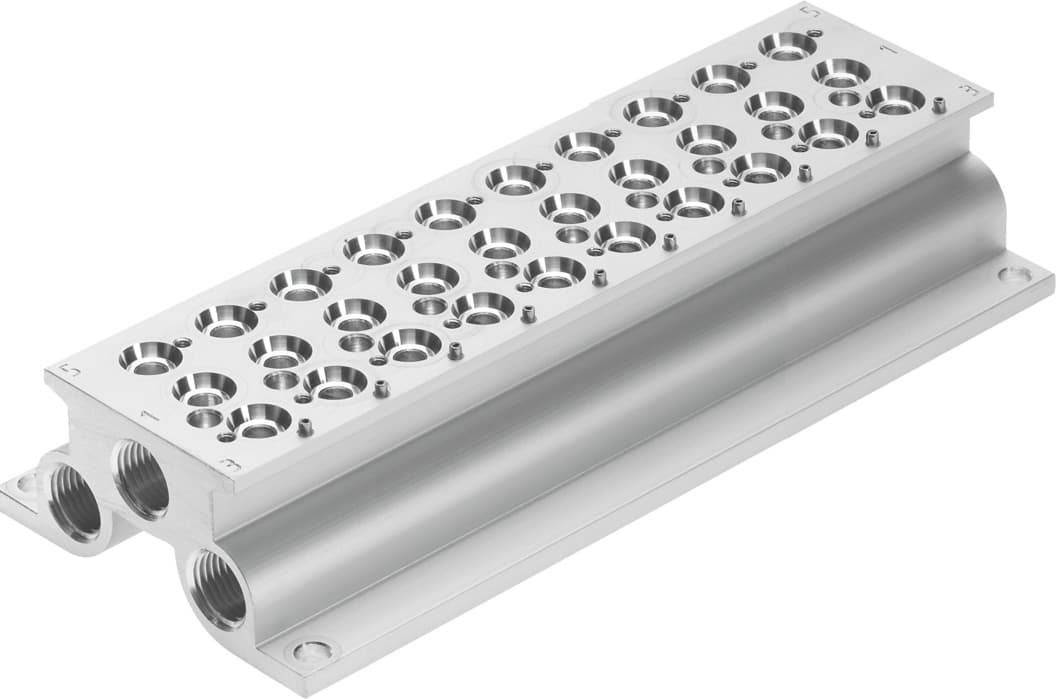

- 1The Festo CPE14-PRS-3/8-10-NPT is a fixed-grid manifold block designed to accommodate up to 10 valve positions, making it an ideal solution for complex pneumatic systems.
- 2This manifold block features three 3/8" NPT threaded connections, ensuring easy and secure pneumatic connections in various industrial settings.
- 3Constructed with high-quality materials, the CPE14-PRS-3/8-10-NPT offers robust performance and durability, suitable for demanding industrial applications.
- 4The versatile design allows for any assembly position, providing flexibility in system integration and configuration.
- 5With a part number #550087, the Festo CPE14-PRS-3/8-10-NPT is a reliable and cost-effective solution for pneumatic manifold needs, backed by Festo's industry-leading quality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 20mm | Mounting position | Any |
Max. no. of valve positions | 10 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 1.22Nm | Product weight | 922.793g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
Pneumatic connection 5 | 3/8 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550087 |
Specifications may be subject to change without notice
