Product Model
cpe14-prs-3/8-4-npt
Selling Points

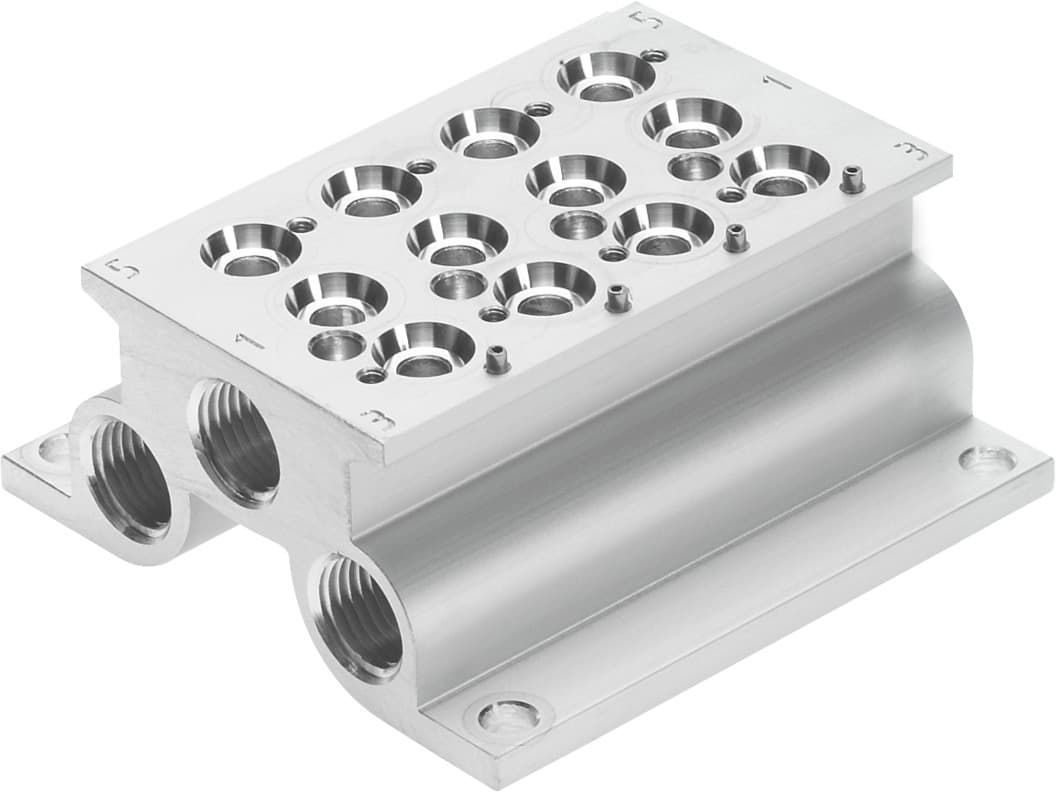

- 1The Festo CPE14-PRS-3/8-4-NPT valve manifold offers a compact design with a grid dimension of 20 mm, making it ideal for space-constrained applications.
- 2This valve manifold supports up to 4 valve positions and 2 pressure zones, providing flexibility and control in pneumatic systems.
- 3With a burst pressure of 5 MPa (50 bar or 725 psi), the CPE14-PRS-3/8-4-NPT ensures reliable operation under high-pressure conditions.
- 4The manifold is constructed from RoHS-compliant wrought aluminum alloy, ensuring durability and resistance to corrosion (CRC class 2).
- 5The valve manifold is designed for easy mounting via female threads and supports pneumatic connections through G3/8 ports, facilitating seamless integration into your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 20mm | Mounting position | Any |
Max. no. of valve positions | 4 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 1.22Nm | Product weight | 408.807g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
Pneumatic connection 5 | 3/8 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550081 |
Specifications may be subject to change without notice
