Product Model
cpe14-prs-3/8-8-npt
Selling Points

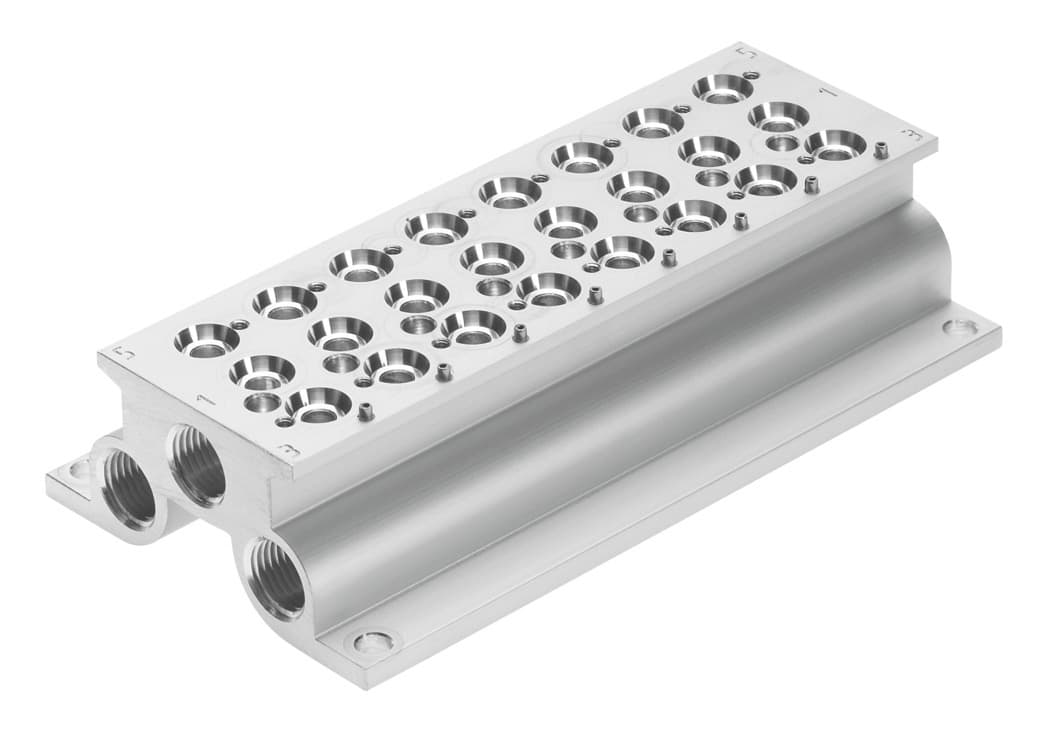

- 1The Festo CPE14-PRS-3/8-8-NPT manifold block offers 8 positions for pneumatic connections, ensuring versatile and efficient system design.
- 2This product features 3/8" NPT threaded connections, providing reliable and secure connections in various industrial settings.
- 3With an operating pressure range of -0.9 to 10 bar and a burst pressure of 50 bar, it can handle demanding applications with ease.
- 4The CPE14-PRS-3/8-8-NPT is designed for through-hole mounting, making it easy to integrate into your existing systems.
- 5This manifold block is part of Festo's CPE series, known for its high-performance and cut-edging technologies in industrial automation and control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 20mm | Mounting position | Any |
Max. no. of valve positions | 8 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 1.22Nm | Product weight | 751.133g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
Pneumatic connection 5 | 3/8 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550085 |
Specifications may be subject to change without notice
