Product Model
cpe14-prsgo-2
Selling Points

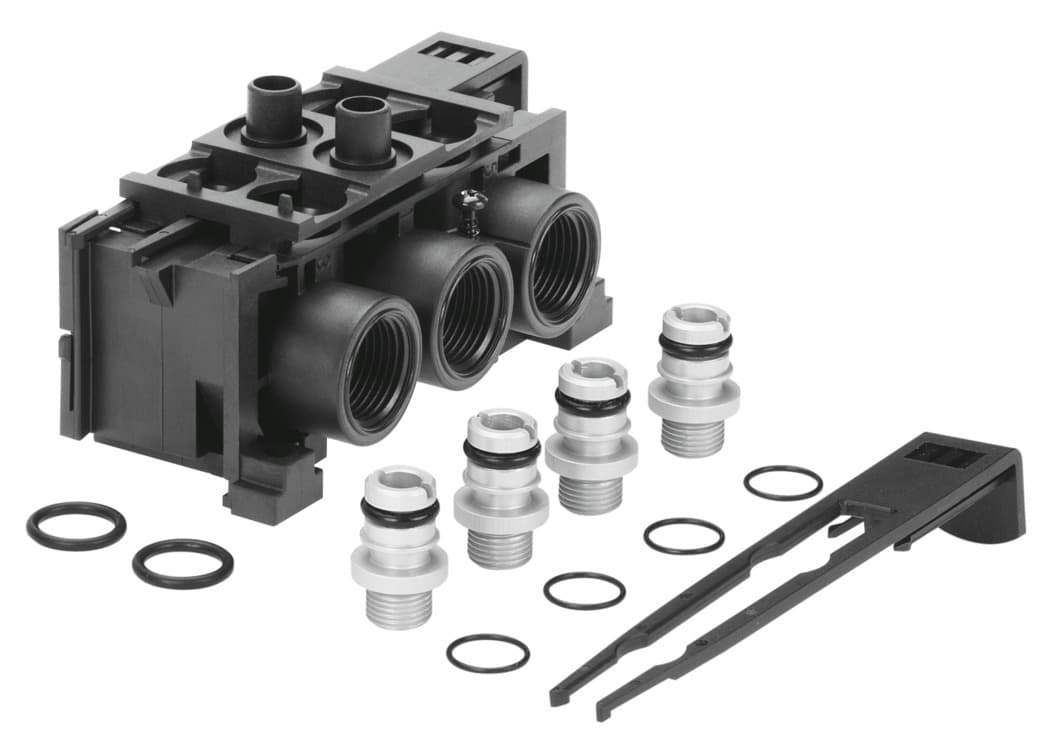

- 1The Festo CPE14-PRSGO-2 manifold block is designed for compact performance valves with open PRS ducts, ensuring efficient pneumatic system operation.
- 2This manifold block supports a maximum of 2 valve positions and operates with compressed air in accordance with ISO8573-1:2010 [7:4:4].
- 3The product features moderate corrosion resistance (CRC 2) and is compatible with lubricated operation, which is required for subsequent use.
- 4The CPE14-PRSGO-2 manifold block has a product weight of 950 grams and can be mounted using either a through-hole or top-hat rail method.
- 5It includes a G3/8 pneumatic connection port and is made from PA-reinforced materials, conforming to RoHS standards and free of copper and PTFE.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Max. no. of valve positions | 2 | Burst pressure | 435psi |
Operating pressure | -0.09MPa 1MPa | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 950g |
Sub-base mounting type | With through-hole With H-rail | Pneumatic connection 1 | G3/8 |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Manufacturer ID | 187829 |
Specifications may be subject to change without notice
