Product Model
cpe18-3/2-prs-3/8-10
Selling Points

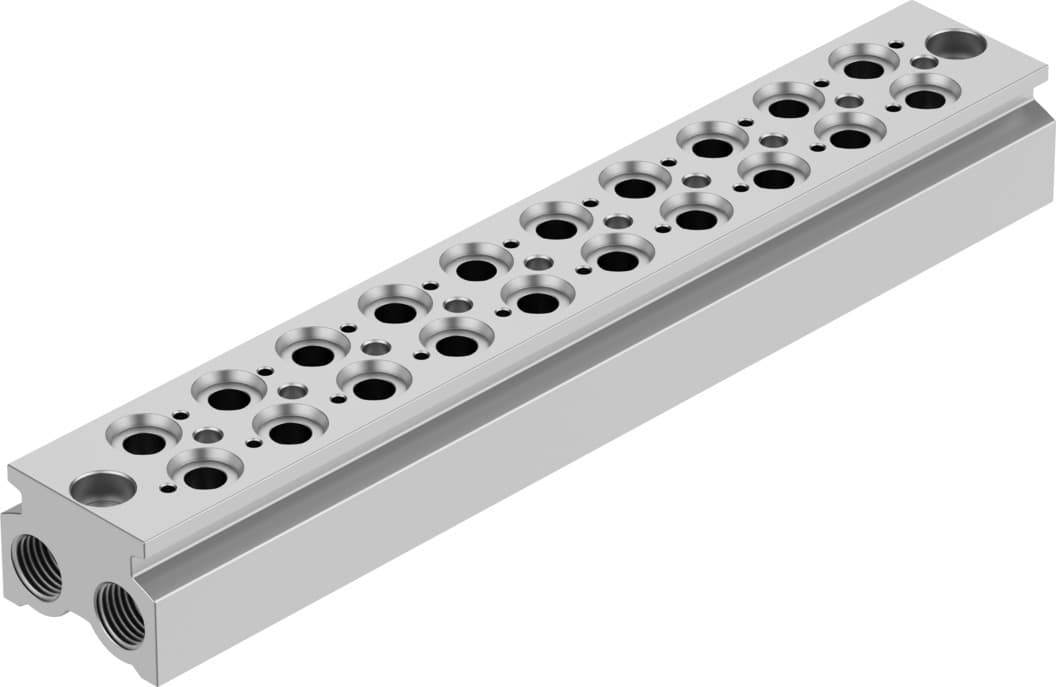

- 1The Festo CPE18-3/2-PRS-3/8-10 manifold block is engineered to provide reliable and efficient pneumatic control, ideal for various industrial applications.
- 2With a grid dimension of 26 mm and optional mounting positions, this manifold block offers flexibility in assembly, making it suitable for diverse valve configurations.
- 3Classified as CRC 2, this product exhibits moderate corrosion stress, ensuring durability in demanding environments.
- 4Operating within -13 to 145 Psi, this manifold block can handle a broad range of pressure requirements, making it versatile for various applications.
- 5Constructed from RoHS-compliant wrought aluminum alloy, this product ensures both performance and environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 26mm | Mounting position | Any |
Max. no. of valve positions | 10 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 2Nm | Product weight | 908g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550576 |
Specifications may be subject to change without notice
