Product Model
cpe18-3/2-prs-3/8-2-npt
Selling Points

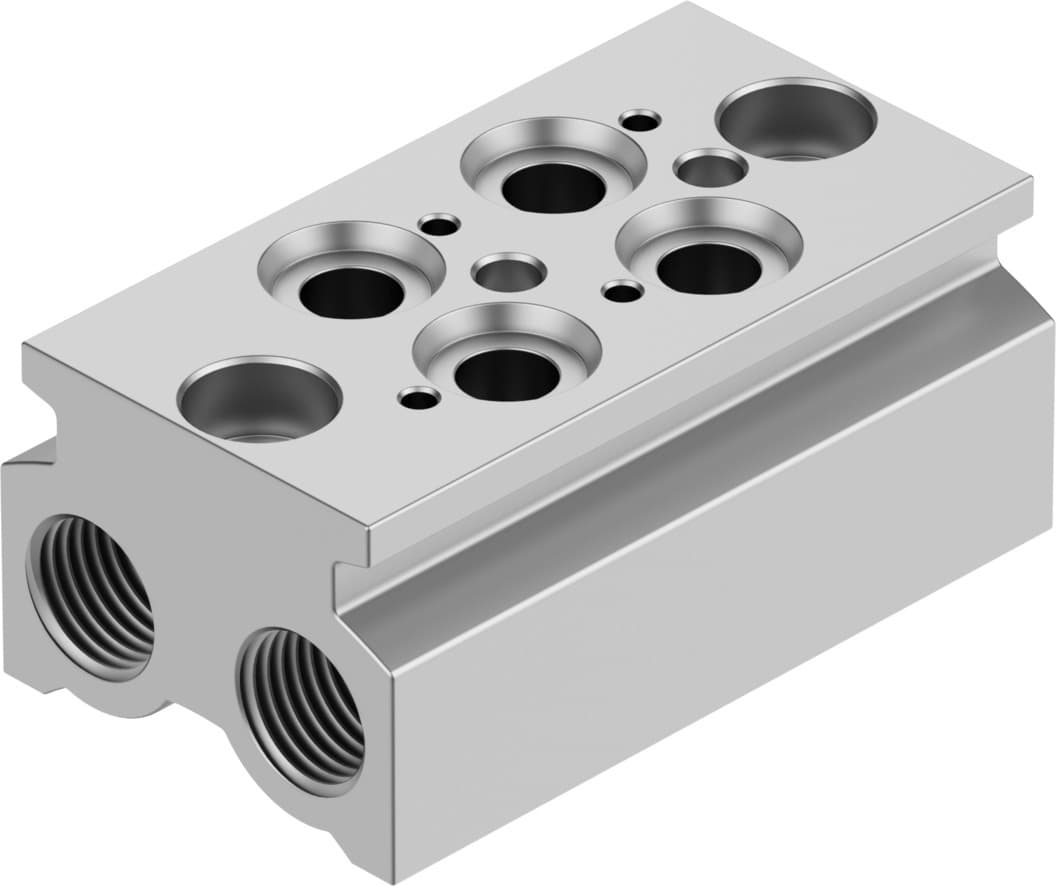

- 1The Festo CPE18-3/2-PRS-3/8-2-NPT manifold block is a versatile and reliable component for pneumatic systems, offering a fixed-grid design suitable for various assembly positions.
- 2This manifold block supports up to 2 valve positions and 2 pressure zones, ensuring efficient control and pressure management in your pneumatic setup.
- 3With a working pressure range of -13 to 145 Psi and an ambient temperature range of -5 to 50°C, the CPE18-3/2-PRS-3/8-2-NPT is designed to operate in a variety of conditions.
- 4The manifold block features 3 x 3/8" NPT threaded (female) pneumatic connections, making it easy to integrate into your existing system.
- 5Constructed from wrought aluminum alloy, this manifold block conforms to RoHS standards and offers moderate corrosion resistance (CRC 2).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 26mm | Mounting position | Any |
Max. no. of valve positions | 2 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 2.034Nm | Product weight | 263.939g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
Pneumatic connection 5 | 3/8 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550619 |
Specifications may be subject to change without notice
