Product Model
cpe18-3/2-prs-3/8-3
Selling Points

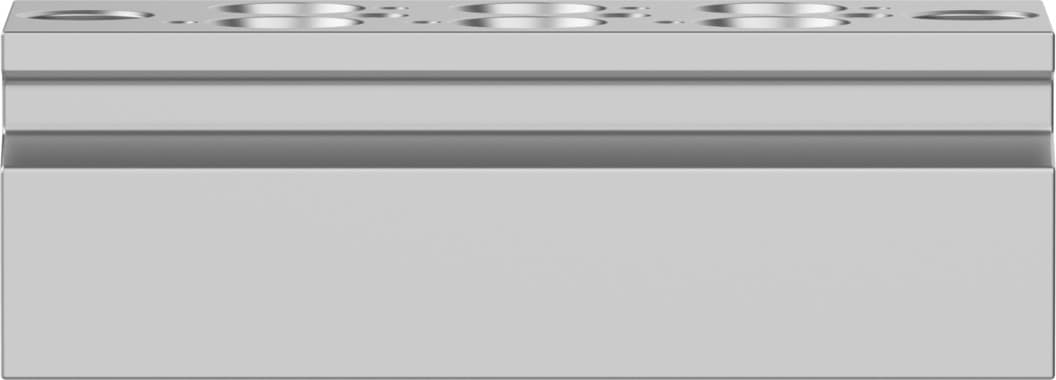

- 1The Festo CPE18-3/2-PRS-3/8-3 manifold block offers a versatile grid dimension of 26 mm, allowing for flexible assembly in any position.
- 2This manifold block supports up to 3 valve positions, making it suitable for complex pneumatic systems.
- 3With a maximum number of pressure zones set at 2, the CPE18-3/2-PRS-3/8-3 ensures efficient control over pneumatic flows.
- 4The product operates within a working pressure range of -13 to 145 Psi, ensuring reliable performance in various industrial settings.
- 5The manifold block is constructed from corrosion-resistant materials, conforming to RoHS standards for environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 26mm | Mounting position | Any |
Max. no. of valve positions | 3 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 2Nm | Product weight | 346g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550569 |
Specifications may be subject to change without notice
