Product Model
cpe18-3/2-prs-3/8-4-npt
Selling Points

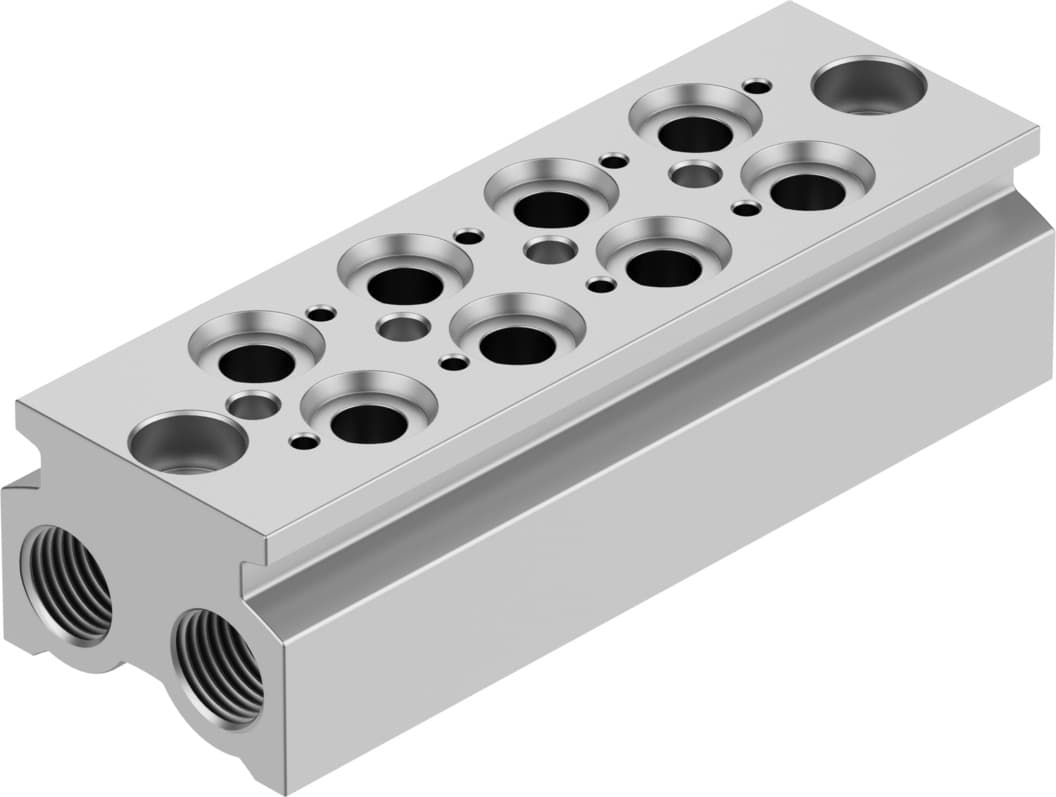

- 1The Festo CPE18-3/2-PRS-3/8-4-NPT manifold block is a high-quality, fixed-grid manifold designed for 4 valve positions, ensuring precise control in various automation applications.
- 2Equipped with 3 x 3/8" NPT threaded female pneumatic connections, this manifold provides reliable and efficient connections for your pneumatic systems.
- 3Ideal for use in industrial settings, the CPE18 series offers standardized dimensions and mounting interfaces, making it easy to integrate into existing systems.
- 4The CPE18-3/2-PRS-3/8-4-NPT manifold block is part of Festo's comprehensive range of pneumatic components, ensuring you have everything you need from a single source.
- 5With its durable construction and high-quality materials, this manifold block ensures long-lasting performance and minimal maintenance requirements, making it a reliable choice for your automation needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 26mm | Mounting position | Any |
Max. no. of valve positions | 4 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 2.034Nm | Product weight | 422.699g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
Pneumatic connection 5 | 3/8 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550621 |
Specifications may be subject to change without notice
