Product Model

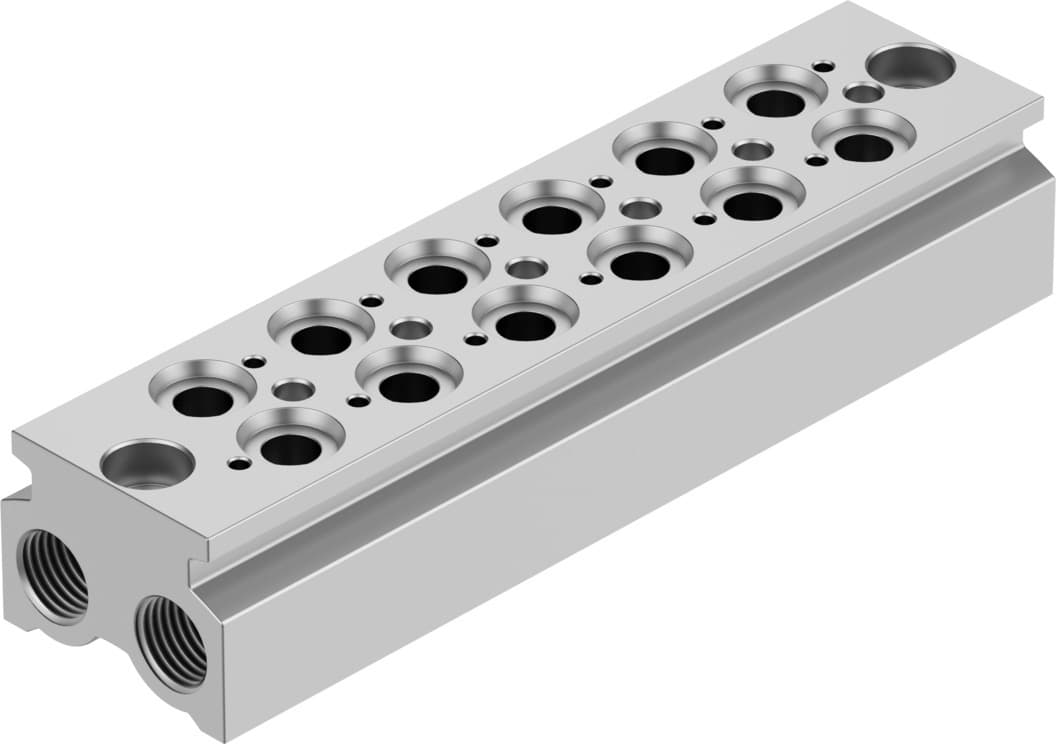

cpe18-3/2-prs-3/8-6
Selling Points
- 1The Festo CPE18-3/2-PRS-3/8-6 valve manifold offers a grid dimension of 26 mm, allowing for precise and efficient valve positioning in various applications.
- 2This manifold supports up to 6 valve positions and 2 pressure zones, making it versatile for complex pneumatic systems.
- 3With a working pressure range of -0.9 to 10 bar and a corrosion resistance classification of CRC 2, the CPE18-3/2-PRS-3/8-6 ensures reliable operation in a variety of environments.
- 4The manifold is designed for in-line mounting with through-hole connections and can be mounted via internal (female) threads, providing flexibility in installation.
- 5Made from RoHS-compliant wrought aluminum alloy, the CPE18-3/2-PRS-3/8-6 offers durability and compliance with environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 26mm | Mounting position | Any |
Max. no. of valve positions | 6 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 2Nm | Product weight | 587g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550572 |
Specifications may be subject to change without notice
