Product Model
cpe18-3/2-prs-3/8-7
Selling Points

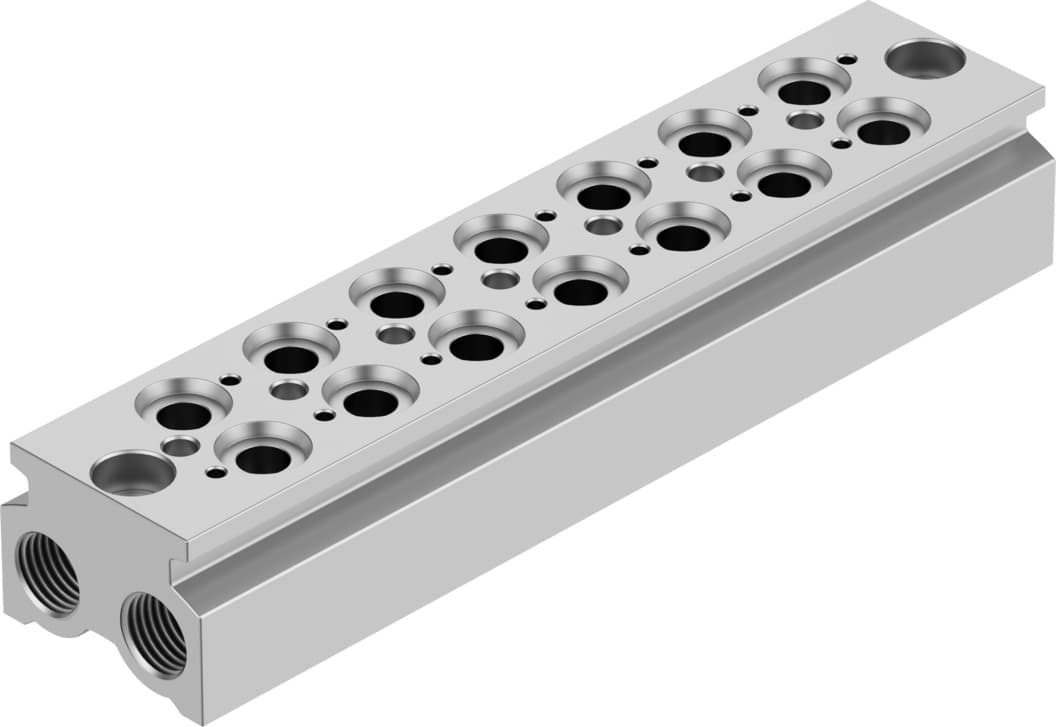

- 1The Festo CPE18-3/2-PRS-3/8-7 manifold block is engineered for precise control, ensuring reliable operation in various automation applications.
- 2This manifold block supports up to 7 valve positions, offering flexibility in configuring your pneumatic system to meet specific needs.
- 3With its optional mounting position and through-hole design, the CPE18-3/2-PRS-3/8-7 manifold block simplifies installation and integration into your system.
- 4Constructed with materials that offer moderate corrosion resistance (CRC 2), this manifold block is suitable for applications where durability is crucial.
- 5The manifold operates within a temperature range of -5°C to 50°C and supports pressures from -0.09 MPa to 1 MPa, making it versatile for various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 26mm | Mounting position | Any |
Max. no. of valve positions | 7 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 2Nm | Product weight | 667g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550573 |
Specifications may be subject to change without notice
