Product Model
cpe18-3/2-prs-3/8-8
Selling Points

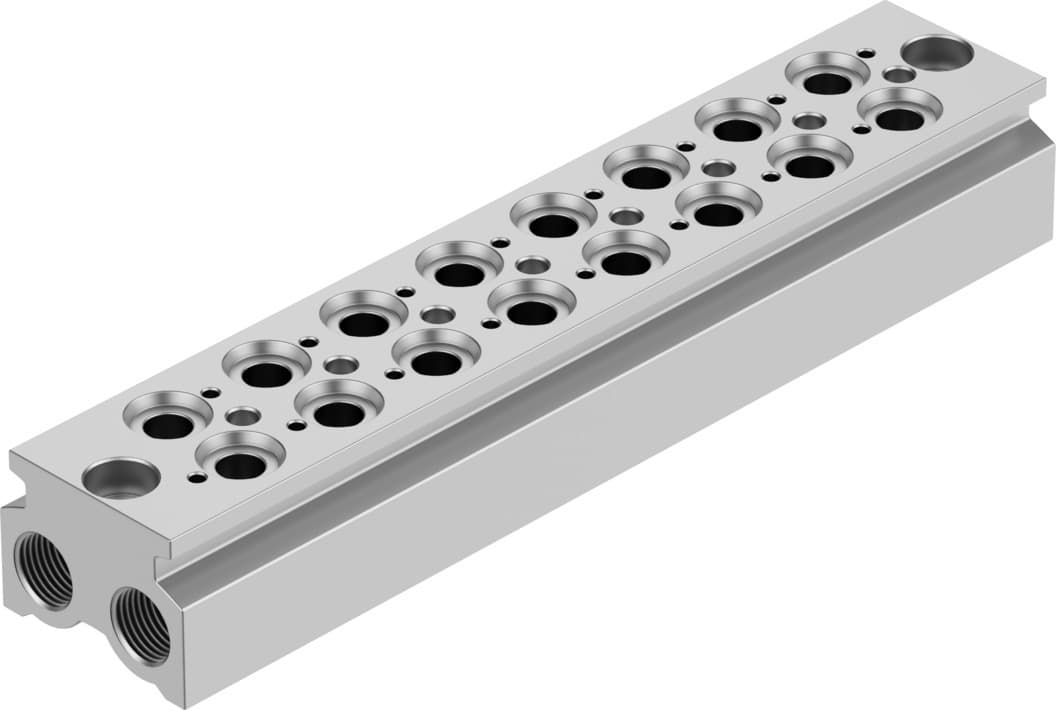

- 1The Festo CPE18-3/2-PRS-3/8-8 NPT manifold block is engineered for precise control, ensuring reliable operation in a variety of pneumatic applications.
- 2With a burst pressure of 725 psi, this manifold block is designed to handle high-pressure conditions, making it suitable for demanding industrial settings.
- 3The manifold block offers optional mounting positions, allowing for flexible installation in various configurations to meet specific application needs.
- 4Constructed from a RoHS-compliant wrought aluminum alloy, the CPE18-3/2-PRS-3/8-8 NPT manifold block provides durability and resistance to corrosion, ensuring long-lasting performance.
- 5Equipped with multiple 3/8 NPT ports, this manifold block offers easy connectivity for pneumatic components, simplifying system integration and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 26mm | Mounting position | Any |
Max. no. of valve positions | 8 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 2Nm | Product weight | 748g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550574 |
Specifications may be subject to change without notice
