Product Model
cpe18-3/2-prs-3/8-9
Selling Points

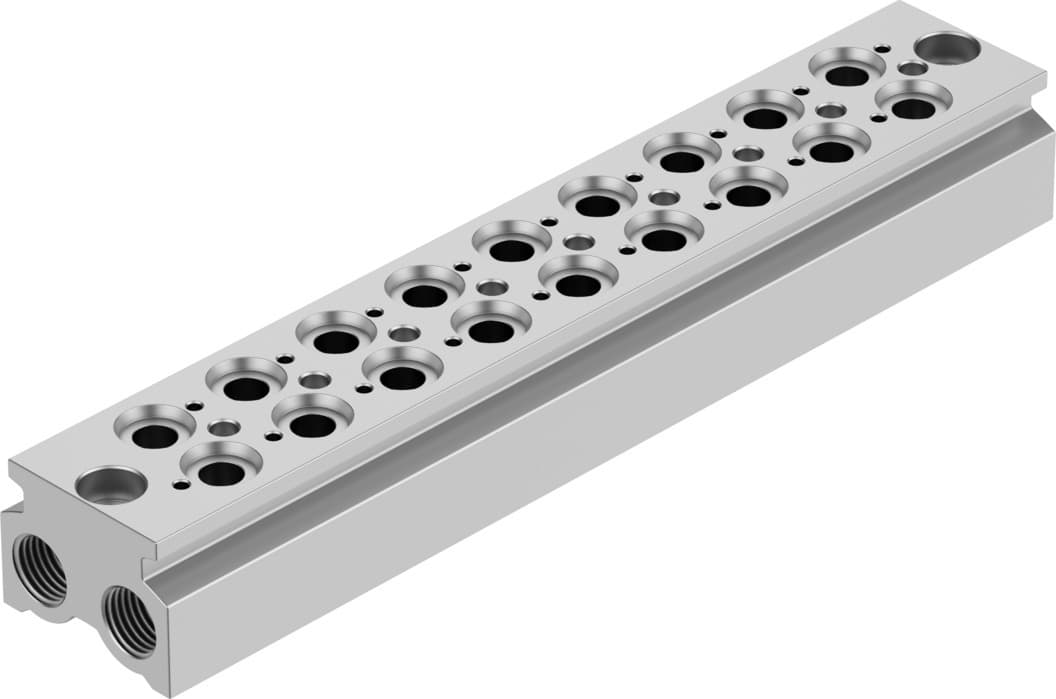

- 1The Festo CPE18-3/2-PRS-3/8-9 is a fixed-grid manifold block designed for 9 valve positions, offering a compact and reliable solution for pneumatic systems.
- 2This manifold features three G3/8" threaded female pneumatic connections, ensuring easy integration with various pneumatic components and systems.
- 3The CPE18-3/2-PRS-3/8-9 is part of the CPE series, known for its high-quality and durable construction, making it suitable for demanding industrial environments.
- 4With its simple and modular design, this manifold is easy to install and maintain, reducing downtime and increasing overall system efficiency.
- 5The Festo CPE18-3/2-PRS-3/8-9 is designed to meet the needs of various industrial applications, including those requiring 3/2-way valve configurations, ensuring flexibility and adaptability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 26mm | Mounting position | Any |
Max. no. of valve positions | 9 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 2Nm | Product weight | 828g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550575 |
Specifications may be subject to change without notice
