Product Model
cpe18-m1h-5js-1/4
Selling Points

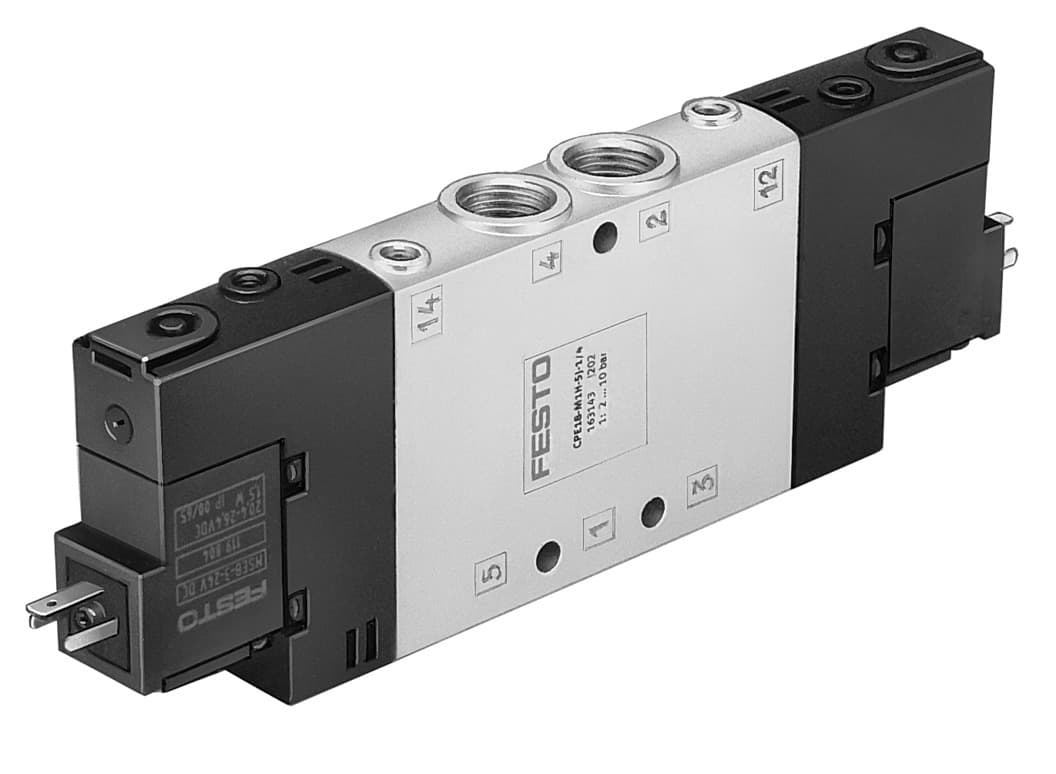

- 1The Festo CPE18-M1H-5J solenoid valve is a 5/2 double solenoid valve designed for precise control in various industrial applications. Its electric actuation ensures reliable operation with minimal energy consumption.
- 2With a standard nominal flow rate of 1500 l/min, this valve is suitable for a wide range of pneumatic systems, providing consistent performance and efficient air flow management.
- 3The valve's compact design, measuring 18 mm in width, makes it ideal for space-constrained applications, offering a versatile solution for both new and existing automation setups.
- 4The CPE18-M1H-5J solenoid valve is part of Festo's extensive range of pneumatic and electrical components, ensuring compatibility with other Festo products for seamless integration.
- 5Known for its industry-leading quality and reliability, this solenoid valve is built to withstand the demands of continuous operation, ensuring high performance and long service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Width | 18mm | Standard nominal flow rate | 1500l/min |
Pneumatic working port | G1/4 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
Certificate issuing authority | DNV-TAA000032X UL MH19482 | Degree of protection | IP65 With plug socket as per IEC 60529 |
Nominal width | 8mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |
Symbol | 00991016 | Valve position ID | Label holder |
Lap | Overlap | Pilot pressure MPa | 0.2MPa 1MPa |
Pilot pressure | 2bar 10bar | Changeover time | 13ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 3300μs |
Max. negative test pulse on 1 signal | 3100μs | Coil characteristics | 24 V DC: 1.5 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Product weight | 270g | Electrical connection | Form C |
Type of mounting | With through-hole | Pilot exhaust air port 82 | M5 |
Pilot exhaust air port 84 | M5 | Pilot air port 12 | M5 |
Pilot air port 14 | M5 | Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
Pneumatic connection 4 | G1/4 | Pneumatic connection 5 | G1/4 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 163147 |
Specifications may be subject to change without notice
