Product Model

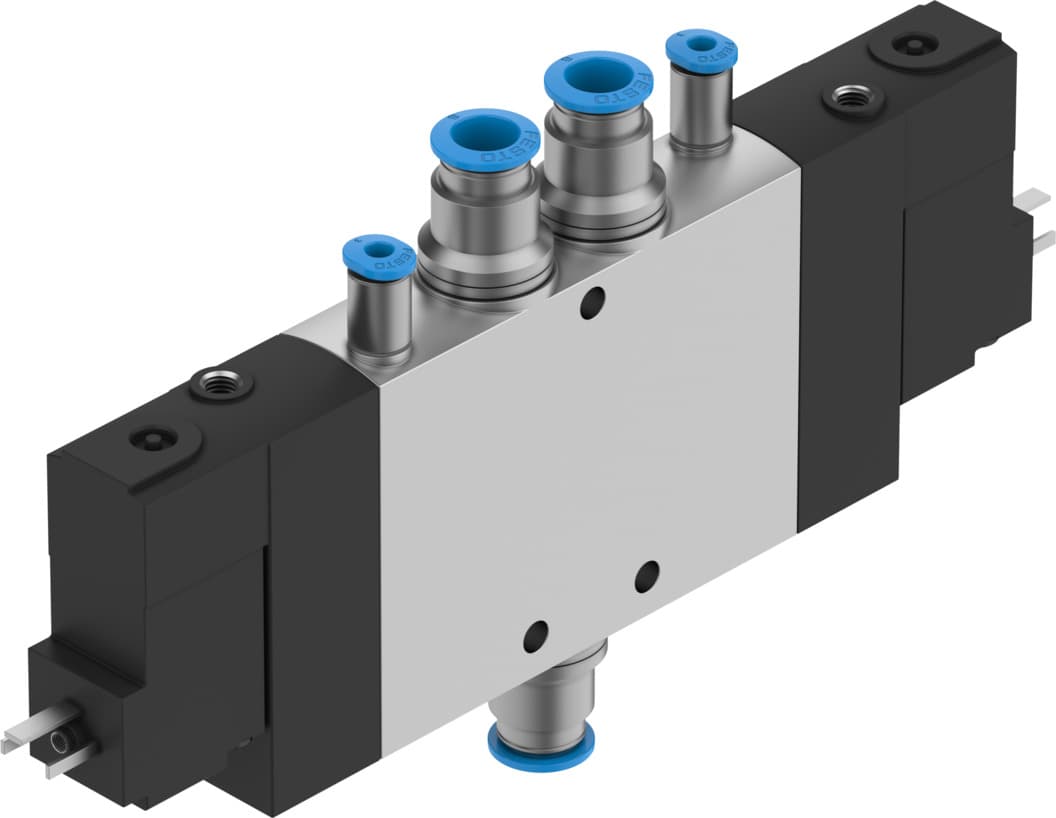

cpe18-m1h-5js-qs-8
Selling Points
- 1The CPE18-M1H-5JS-QS-8 air solenoid valve offers a standard nominal flow rate of up to 850 liters per minute, making it suitable for high-demand applications.
- 2Built with die-cast aluminum housing and NBR seals, this valve ensures durability and resistance to various operating conditions.
- 3Equipped with pneumatic connections including QS-8 and G1/4, the CPE18-M1H-5JS-QS-8 provides flexibility in system design and integration.
- 4This bistable valve remains in the switching position on signal switch-off, ensuring consistent performance and reliability.
- 5The valve meets stringent standards, including compliance with ISO 8573-1:2010 for compressed air quality and resistance to corrosion class 2.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Width | 18mm | Standard nominal flow rate | 850l/min |
Pneumatic working port | QS-8 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
Certificate issuing authority | DNV-TAA000032X UL MH19482 | Degree of protection | IP65 With plug socket as per IEC 60529 |
Nominal width | 8mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |
Symbol | 00991016 | Valve position ID | Label holder |
Lap | Overlap | Pilot pressure MPa | 0.2MPa 1MPa |
Pilot pressure | 2bar 10bar | Changeover time | 13ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 3300μs |
Max. negative test pulse on 1 signal | 3100μs | Coil characteristics | 24 V DC: 1.5 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Electrical connection | Form C | Type of mounting | With through-hole |
Pilot exhaust air port 82 | M5 | Pilot exhaust air port 84 | M5 |
Pilot air port 12 | M5 | Pilot air port 14 | M5 |
Pneumatic connection 1 | QS-8 | Pneumatic connection 2 | QS-8 |
Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | QS-8 |
Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 163155 |
Specifications may be subject to change without notice
