Product Model

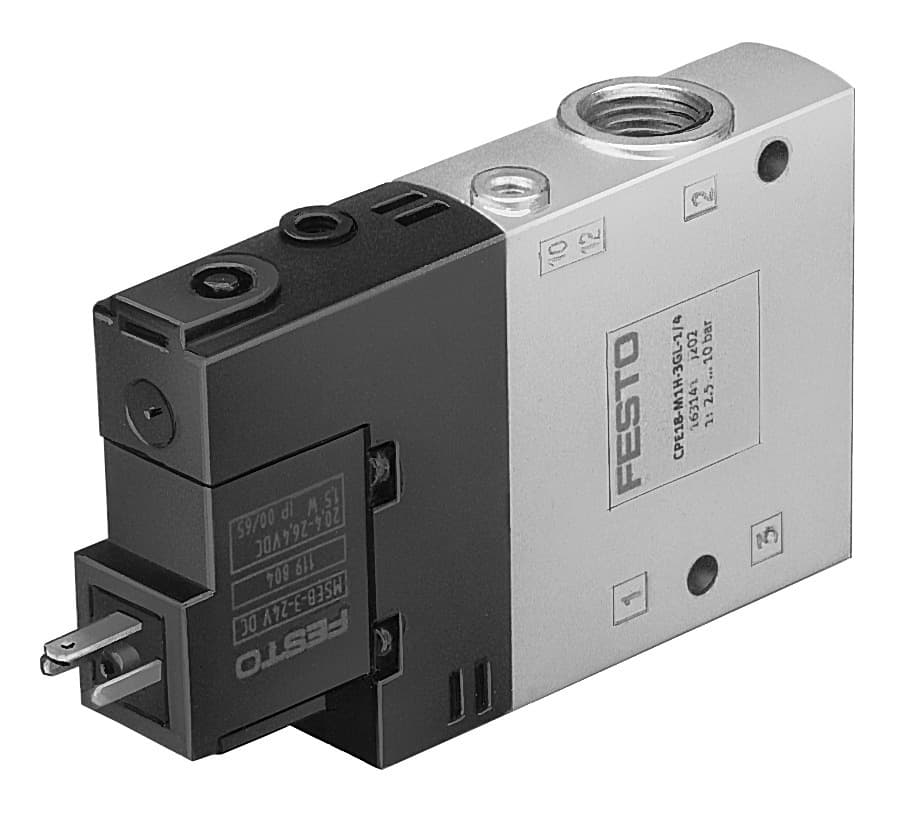

cpe18-m3h-3gl-1/4
Selling Points
- 1High Flow Rate: The CPE18-M3H-3GL-1/4 solenoid valve offers a standard nominal flow rate of 1,300 liters per minute, making it suitable for demanding industrial applications.
- 2Electrical Actuation: This valve is electrically actuated, providing precise control and reliability in a wide range of operating conditions.
- 3Robust Design: With a design structure that includes a piston slide and air spring reset, the CPE18-M3H-3GL-1/4 is built to withstand various environmental stresses.
- 4IP65 Protection: The valve features an IP65 protection class with a plug socket, ensuring it can operate in harsh environments while maintaining its performance.
- 5Versatile Mounting Options: The valve can be mounted with a through hole and offers manual override with detenting, providing flexibility in installation and operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 3/2, closed, monostable | Actuation type | Electrical |
Width | 18mm | Standard nominal flow rate | 1300l/min |
Pneumatic working port | G1/4 | Operating voltage | 230V AC |
Operating pressure | 2.5bar 10bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 8mm |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991655 | Valve position ID | Label holder |
Lap | Overlap | Switching time off | 18ms |
On switching time | 28ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 3300μs | Max. negative test pulse on 1 signal | 3100μs |
Coil characteristics | 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA | Permissible voltage fluctuations | -15 % / +10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Product weight | 150g | Electrical connection | Form C |
Type of mounting | With through-hole | Pilot exhaust air port 82 | M5 |
Pilot air port 12 | M5 | Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 163785 |
Specifications may be subject to change without notice
