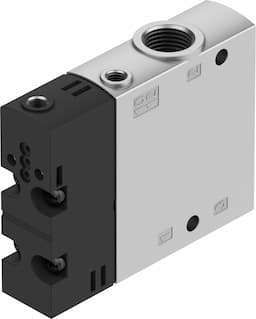

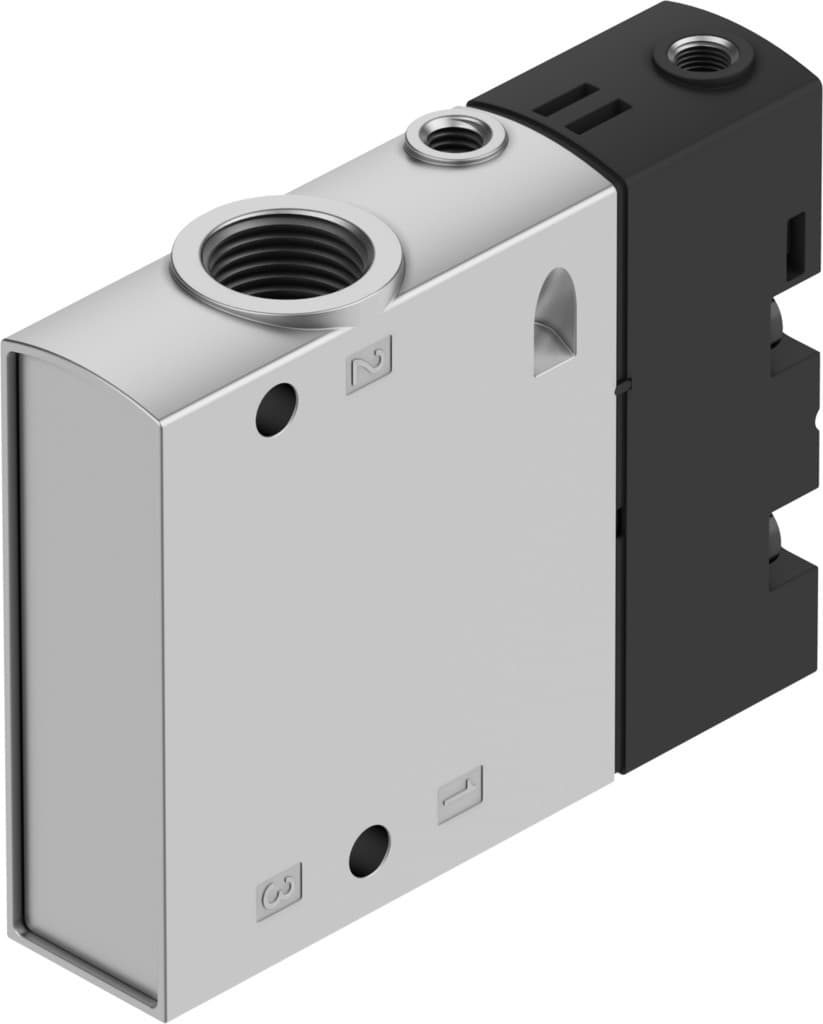

Product Model
cpe18-p1-3gl-1/4
Selling Points
- 1Compact Design and Versatility: The Festo CPE18-P1-3GL-1/4 basic valve is designed for compact assemblies, offering a 3/2-way, closed, monostable valve function. Its CNOMO interface ensures easy integration into various systems.
- 2High Flow Rate and Pressure: With a standard nominal flow rate of 1300 l/min and operating pressure ranging from 2.5 to 10 bar, this valve is suitable for demanding industrial applications.
- 3Pilot Interface Compatibility: The valve is actuated via a pilot interface to ISO 15218, providing a reliable and efficient control mechanism.
- 4Robust Construction and Materials: Constructed from die-cast aluminum with NBR seals, the valve ensures durability and resistance to corrosion, making it suitable for harsh environments.
- 5Certified for Safety and Quality: The Festo CPE18-P1-3GL-1/4 basic valve is certified for use in maritime applications and complies with EU Low Voltage Directive and UK regulations for electrical equipment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 3/2, closed, monostable | Actuation type | Via ISO 15218 pilot control interface |
Width | 18mm | Standard nominal flow rate | 1300l/min |
Pneumatic working port | G1/4 | Operating pressure | 2.5bar 10bar |
Structural design | Piston gate valve | Reset method | Pneumatic spring |
Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
Certificate issuing authority | DNV-TAA000032X UL MH19482 | Nominal width | 8mm |
Sealing principle | Soft | Mounting position | Any |
Manual override | Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991655 | Valve position ID | Label holder |
Lap | Overlap | Switching time off | 30ms |
On switching time | 36ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 3300μs | Max. negative test pulse on 1 signal | 3100μs |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Ambient temperature | -5°C 50°C | Product weight | 110g |
Type of mounting | With through-hole | Pilot exhaust air port 82 | M5 |
Pilot air port 12 | M5 | Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 550163 |
Specifications may be subject to change without notice
