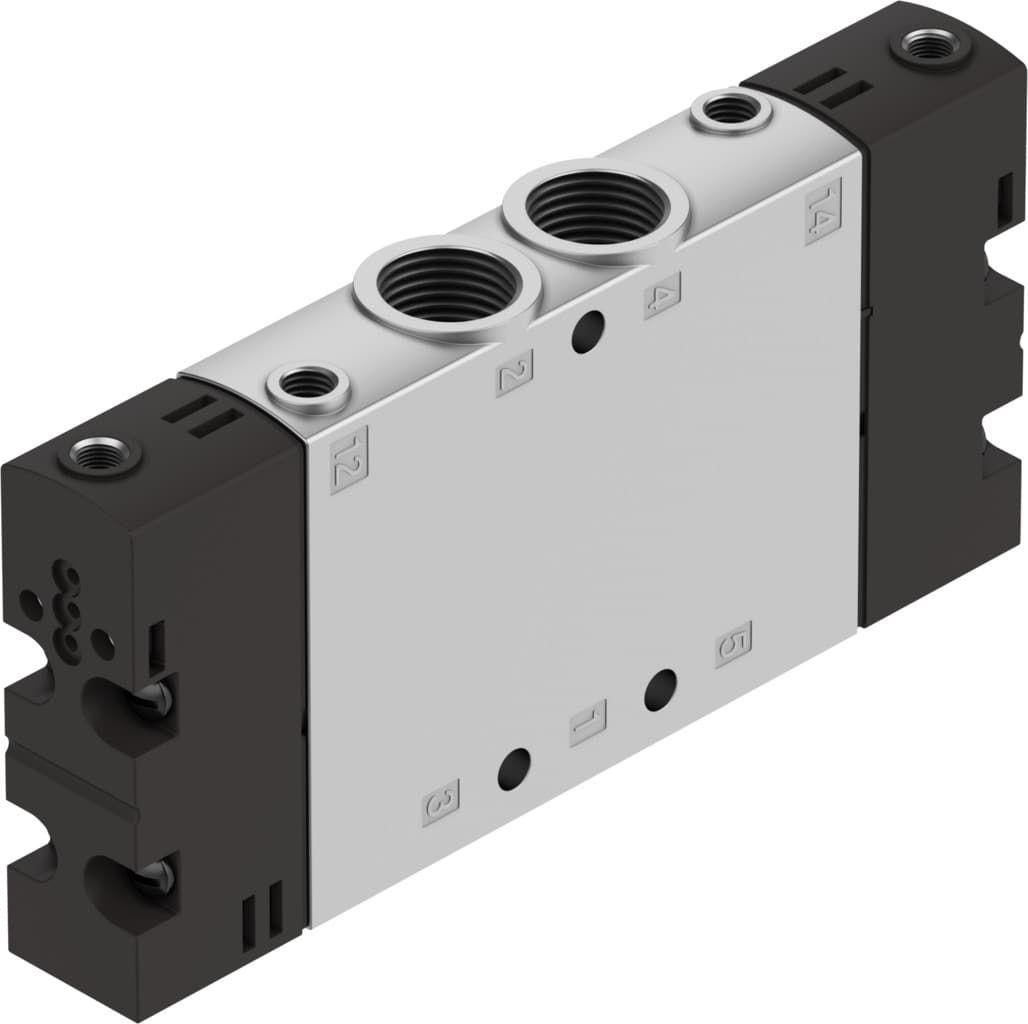

Product Model
cpe18-p1-5/3b-1/4
Selling Points
- 1High-Performance Air Control: The Festo CPE18-M1H-5L-1/4 solenoid valve offers high flow rates of up to 1300 l/min, making it suitable for demanding industrial applications.
- 2Compact Design: With a width of 18 mm, this valve is designed to be compact and space-efficient, perfect for integration into tight spaces.
- 3Reliable Operation: Operating at 24V DC, this valve ensures reliable operation with minimal power consumption and high durability.
- 4Versatile Mounting Options: The valve can be mounted in any position, providing flexibility in installation and setup.
- 5Enhanced Safety Features: Equipped with IP65 protection and a soft sealing principle, this valve ensures reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, pressurized | Actuation type | Via ISO 15218 pilot control interface |
Width | 18mm | Standard nominal flow rate | 1300l/min |
Pneumatic working port | G1/4 | Operating pressure | 2.5bar 10bar |
Structural design | Piston gate valve | Reset method | Mechanical spring |
Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
Certificate issuing authority | DNV-TAA000032X UL MH19482 | Nominal width | 8mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991034 |
Valve position ID | Label holder | Lap | Overlap |
Switching time off | 34ms | On switching time | 20ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 3300μs |
Max. negative test pulse on 1 signal | 3100μs | Permissible voltage fluctuations | -15 % / +10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Product weight | 200g | Type of mounting | With through-hole |
Pilot exhaust air port 82 | M5 | Pilot exhaust air port 84 | M5 |
Pilot air port 12 | M5 | Pilot air port 14 | M5 |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/4 |
Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 550161 |
Specifications may be subject to change without notice
