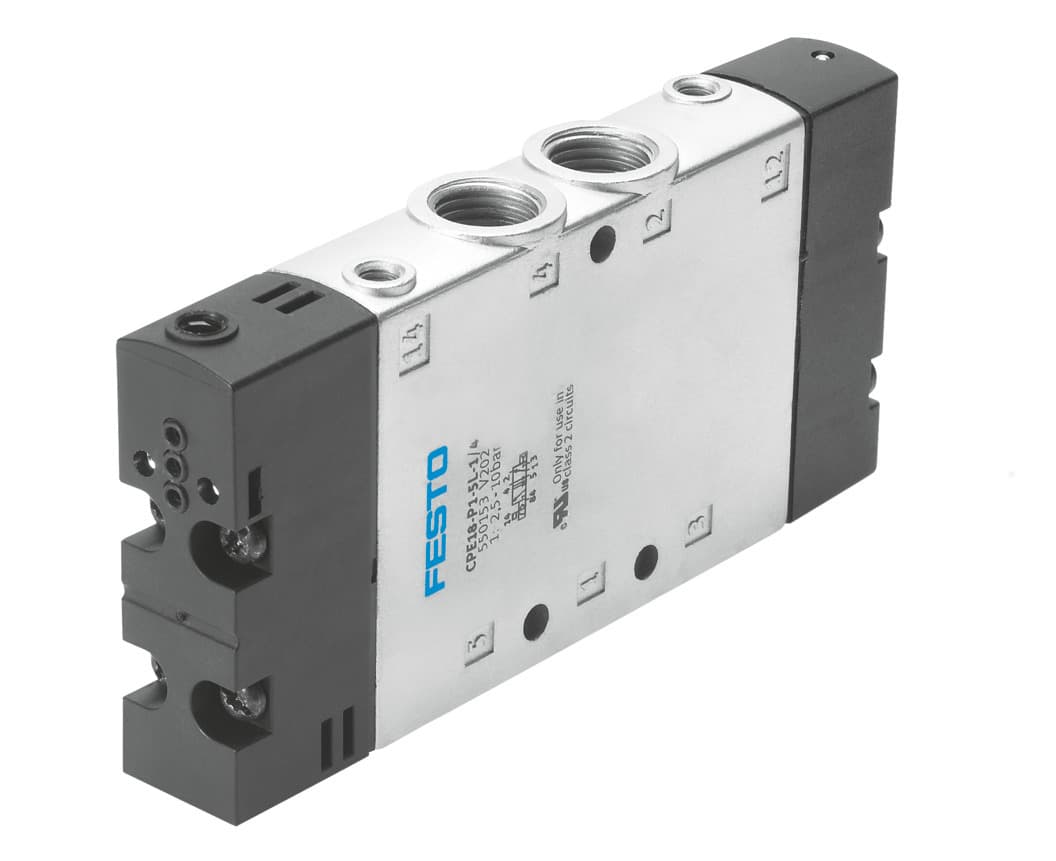

Product Model
cpe18-p1-5ls-1/4
Selling Points
- 1High-Performance Air Control: The Festo CPE18-M1H-5L-1/4 solenoid valve offers reliable and efficient air control with a flow rate of 1500 l/min, making it ideal for various industrial applications.
- 2V DC Operation: This valve operates on 24V DC, ensuring precise control and minimizing energy consumption. It also supports voltage fluctuations up to -1.5V, providing stability in various environments.
- 3/2-Way Functionality: The valve features a 5/2-way configuration, allowing for versatile control of pneumatic systems. It includes internal pilot air supply and manual override options for added flexibility.
- 4Compact Design: With a width of 18 mm, the CPE18-M1H-5L-1/4 is designed for compact installations, making it suitable for space-constrained applications. It also meets IP65 protection standards with a plug socket.
- 5Certified and Reliable: The valve is certified by cULus and recognized for its reliability. It is also designed with soft seals and a pneumatic spring reset method, ensuring consistent performance and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Via ISO 15218 pilot control interface |
Width | 18mm | Standard nominal flow rate | 1500l/min |
Pneumatic working port | G1/4 | Operating pressure | -0.9bar 10bar |
Structural design | Piston gate valve | Reset method | Pneumatic spring |
Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
Certificate issuing authority | DNV-TAA000032X UL MH19482 | Nominal width | 8mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |
Flow direction | Reversible | Symbol | 00991026 |
Valve position ID | Label holder | Lap | Overlap |
Pilot pressure MPa | 0.25MPa 1MPa | Pilot pressure | 2.5bar 10bar |
Switching time off | 32ms | On switching time | 30ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 3300μs |
Max. negative test pulse on 1 signal | 3100μs | Permissible voltage fluctuations | -15 % / +10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Product weight | 180g |
Type of mounting | With through-hole | Pilot exhaust air port 82 | M5 |
Pilot exhaust air port 84 | M5 | Pilot air port 12 | M5 |
Pilot air port 14 | M5 | Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
Pneumatic connection 4 | G1/4 | Pneumatic connection 5 | G1/4 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 550154 |
Specifications may be subject to change without notice
