Product Model
cpe18-prs-3/8-2-npt
Selling Points

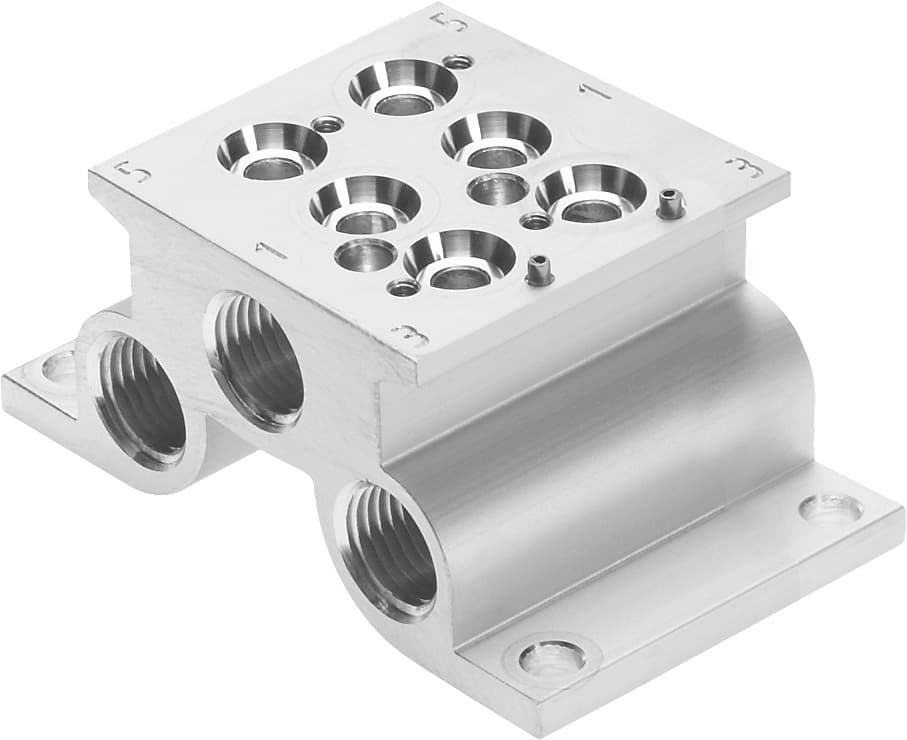

- 1The Festo CPE18-PRS-3/8-2-NPT is designed to streamline your manufacturing process with its fixed-grid manifold block, perfect for 2 valve positions.
- 2Equipped with 3 x 3/8" NPT threaded connections, this manifold block ensures reliable and precise pneumatic connections.
- 3The CPE18-PRS-3/8-2-NPT can be installed in any position, offering flexibility in your automation setup.
- 4With a grid dimension of 26 mm, this manifold block fits seamlessly into your existing automation systems.
- 5Ideal for applications requiring precise control, the CPE18-PRS-3/8-2-NPT enhances productivity by minimizing errors and maximizing efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 26mm | Mounting position | Any |
Max. no. of valve positions | 2 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 2.034Nm | Product weight | 350.264g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
Pneumatic connection 5 | 3/8 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550088 |
Specifications may be subject to change without notice
