Product Model

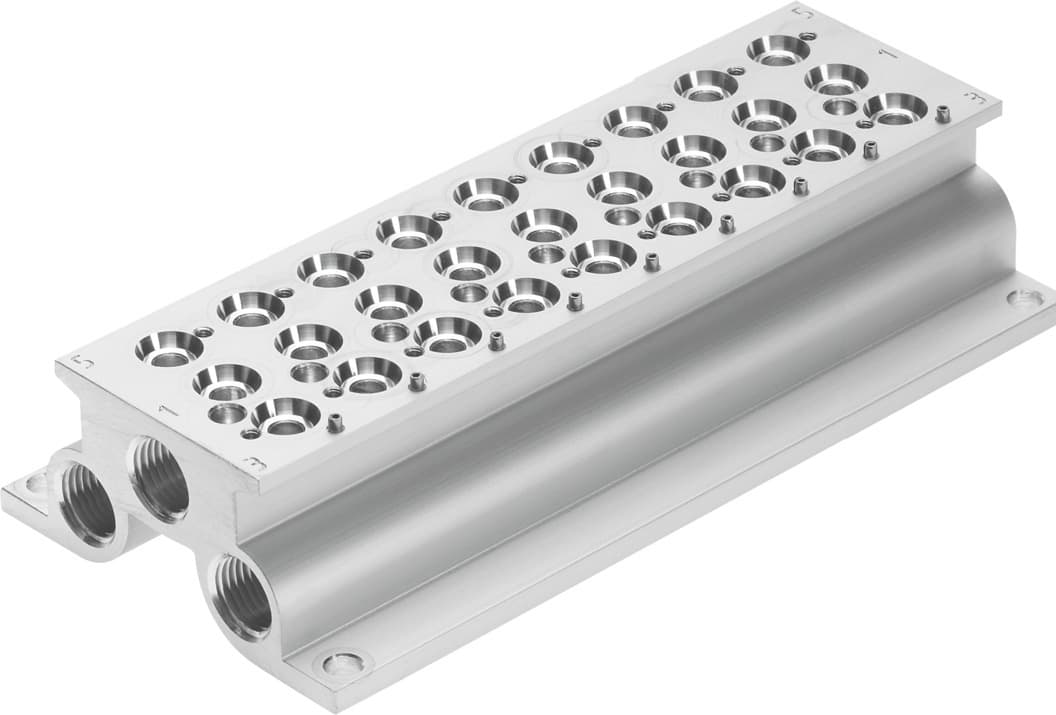

cpe18-prs-3/8-9-npt
Selling Points
- 1The CPE18-PRS-3/8-9-NPT manifold block is engineered for high-performance pneumatic applications, ensuring reliable and efficient operation in demanding environments.
- 2This manifold block supports up to 9 valve positions, providing flexibility and adaptability in various automation setups.
- 3Equipped with 3 x 3/8" NPT threaded connections, the CPE18-PRS-3/8-9-NPT simplifies integration and reduces installation time.
- 4Built to withstand the rigors of industrial use, this manifold block offers a robust design that ensures long-lasting performance.
- 5Designed specifically for use with Festo valves, the CPE18-PRS-3/8-9-NPT ensures seamless integration and optimal functionality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 26mm | Mounting position | Any |
Max. no. of valve positions | 8 | Max. no. of pressure zones | 2 |
Burst pressure | 725psi | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 2.034Nm | Product weight | 1247.258g |
Manifold block type of mounting | With through-hole | Pneumatic valve mounting type | With internal thread |
Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
Pneumatic connection 5 | 3/8 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 550095 |
Specifications may be subject to change without notice
