Product Model
cpe18-prseo-2
Selling Points

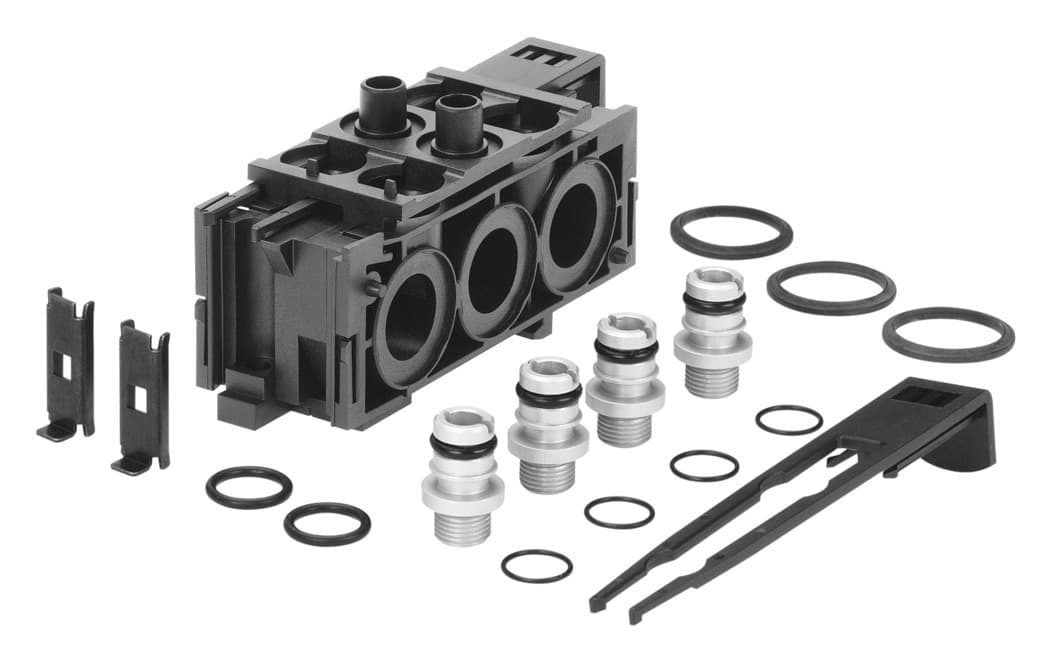

- 1The Festo CPE18-PRSEO-2 manifold block is specifically designed for compact performance valves with open PRS ducts, ensuring efficient operation in various industrial settings.
- 2This manifold block supports up to 2 valve positions, making it versatile for a range of pneumatic control applications.
- 3The product operates with compressed air in accordance with ISO8573-1:2010 [7:4:4], ensuring high-quality compressed air standards.
- 4The CPE18-PRSEO-2 features moderate corrosion resistance (CRC=2), making it suitable for applications where some corrosion stress is anticipated.
- 5The manifold block is constructed from PA-reinforced materials, free of copper and PTFE, and conforms to RoHS standards for environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Max. no. of valve positions | 2 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 145g |
Sub-base mounting type | With through-hole With H-rail | Pneumatic connection 1 | G1/2 |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Manufacturer ID | 187832 |
Specifications may be subject to change without notice
