Product Model
cpe18-prsgo-3
Selling Points

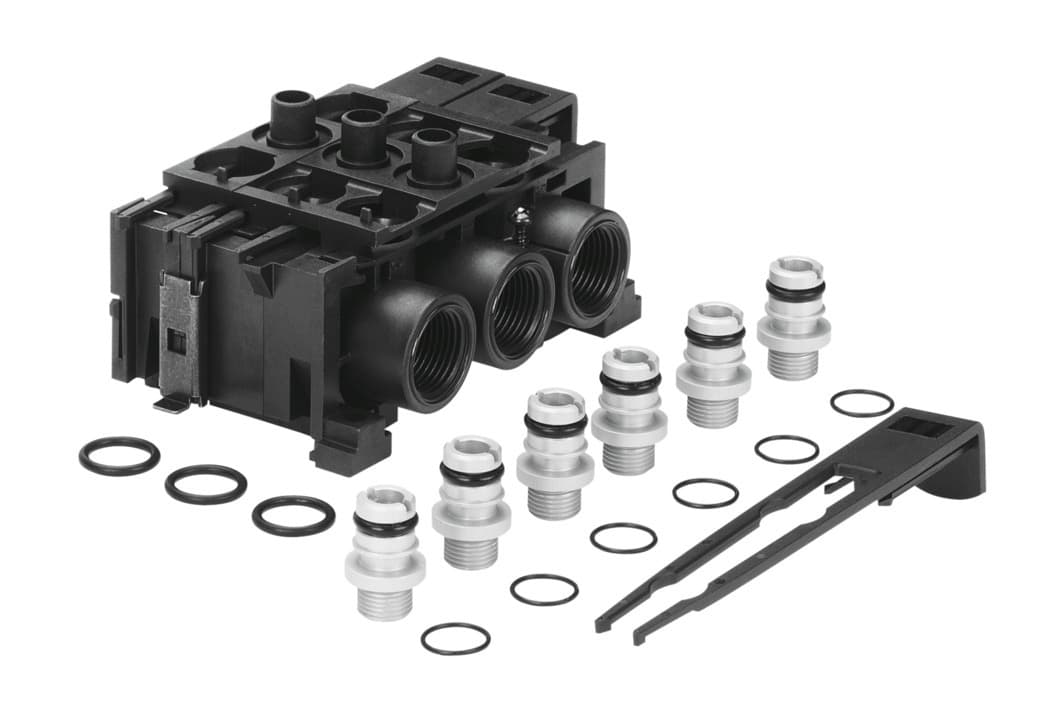

- 1The Festo CPE18-PRSGO-3 is a compact and efficient pneumatic manifold block designed for use with open PRS ducts, offering a maximum of 3 valve positions.
- 2This manifold block operates with compressed air to ISO 8573-1:2010 [7:4:4] standards, ensuring reliable performance in various industrial applications.
- 3The CPE18-PRSGO-3 supports lubricated operation, which is required for further use, enhancing its durability and longevity.
- 4With a corrosion resistance class of CRC 2 – Moderate corrosion stress, this product is suitable for applications where moderate corrosion resistance is needed.
- 5The manifold block is made from PA-reinforced materials, ensuring it is RoHS-compliant and free of copper and PTFE, making it an environmentally friendly choice.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Max. no. of valve positions | 3 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 225g |
Sub-base mounting type | With through-hole With H-rail | Pneumatic connection 1 | G1/2 |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Manufacturer ID | 187821 |
Specifications may be subject to change without notice
