Product Model

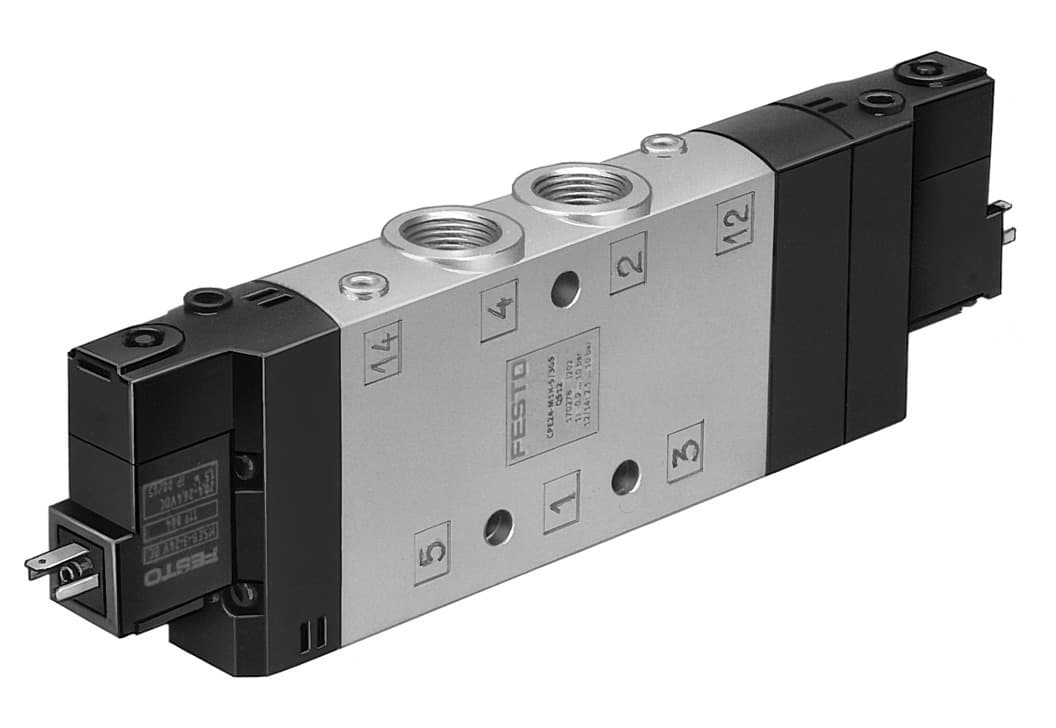

cpe24-m1h-5j-3/8
Selling Points
- 1The Festo CPE24-M1H-5J-3/8 solenoid valve features a 5/2 bistable function, allowing for reliable and efficient control in various industrial applications.
- 2With electrical actuation, this valve offers quick and precise control, making it suitable for a wide range of pneumatic systems.
- 3The valve has a standard nominal flow rate of 3200 l/min, ensuring high performance and efficiency in pneumatic operations.
- 4Constructed with a piston slide design and IP65 protection class, this valve is durable and resistant to harsh environments.
- 5The valve can be installed in any position, offering flexibility in system design and integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Width | 24mm | Standard nominal flow rate | 3200l/min |
Pneumatic working port | G3/8 | Operating voltage | 24V DC |
Operating pressure | 2bar 10bar | Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
Certificate issuing authority | DNV-TAA000032X UL MH19482 | Degree of protection | IP65 With plug socket as per IEC 60529 |
Nominal width | 11mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991013 | Valve position ID | Label holder |
Lap | Overlap | Changeover time | 25ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 3300μs |
Max. negative test pulse on 1 signal | 3100μs | Coil characteristics | 24 V DC: 1.5 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Ambient temperature | -5°C 50°C | Product weight | 390g |
Electrical connection | Form C | Type of mounting | With through-hole |
Pilot exhaust air port 82 | M5 | Pilot exhaust air port 84 | M5 |
Pilot air port 12 | M5 | Pilot air port 14 | M5 |
Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G3/8 |
Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 163167 |
Specifications may be subject to change without notice
