Product Model

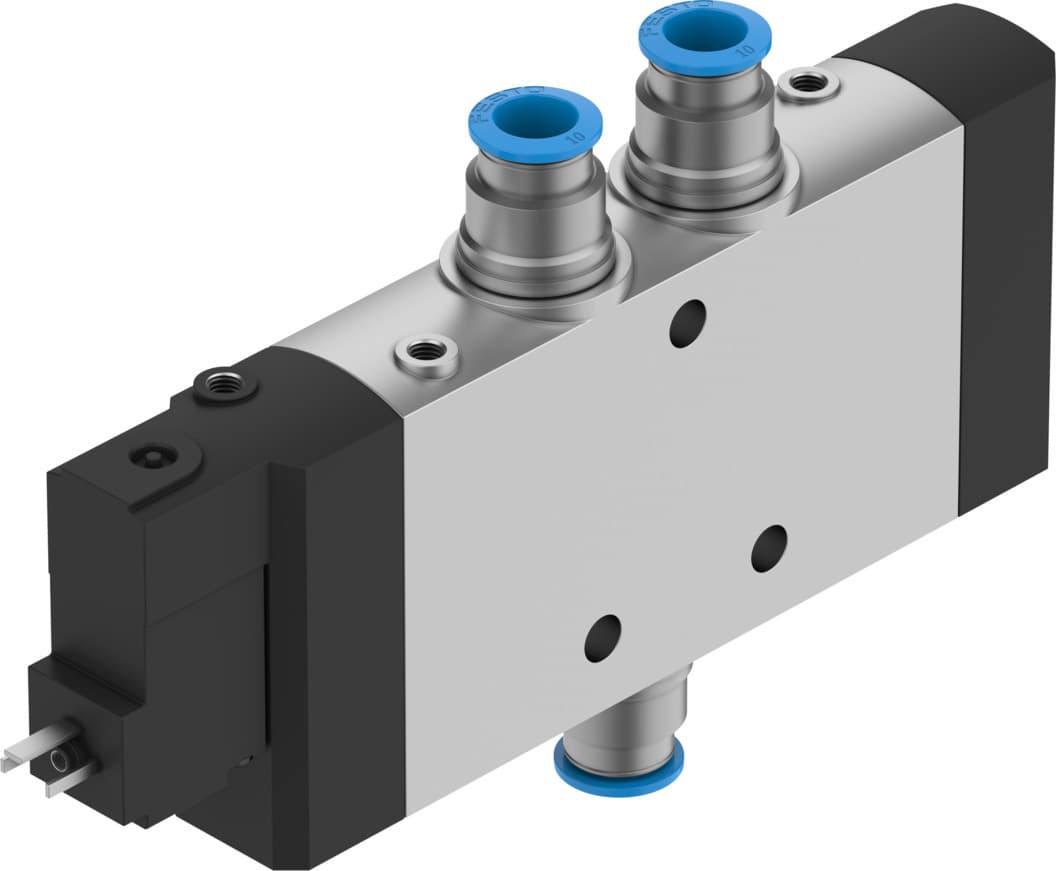

cpe24-m1h-5l-qs-10
Selling Points
- 1The CPE24-M1H-5L-QS-10 solenoid valve boasts a compact design with high component density, making it perfect for space-constrained industrial automation setups.
- 2This valve offers a 5/2 monostable function, providing reliable and efficient control in various industrial applications.
- 3With electrical actuation, the CPE24-M1H-5L-QS-10 valve ensures precise and reliable operation, reducing the need for manual intervention.
- 4The valve features a standard nominal flow rate of 1,250 l/min, making it suitable for a wide range of industrial fluid control applications.
- 5The CPE24-M1H-5L-QS-10 operates within a pressure range of 2.5 to 10 bar, offering flexibility in various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 24mm | Standard nominal flow rate | 1250l/min |
Pneumatic working port | QS-10 | Operating voltage | 24V DC |
Operating pressure | 2.5bar 10bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 11mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991023 |
Valve position ID | Label holder | Lap | Overlap |
Switching time off | 50ms | On switching time | 40ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 3300μs |
Max. negative test pulse on 1 signal | 3100μs | Coil characteristics | 24 V DC: 1.5 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Ambient temperature | -5°C 50°C | Electrical connection | Form C |
Type of mounting | With through-hole | Pilot exhaust air port 82 | M5 |
Pilot exhaust air port 84 | M5 | Pilot air port 12 | M5 |
Pilot air port 14 | M5 | Pneumatic connection 1 | QS-10 |
Pneumatic connection 2 | QS-10 | Pneumatic connection 3 | G3/8 |
Pneumatic connection 4 | QS-10 | Pneumatic connection 5 | G3/8 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 163174 |
Specifications may be subject to change without notice
