Product Model
cpe24-m1h-5l-qs-12
Selling Points

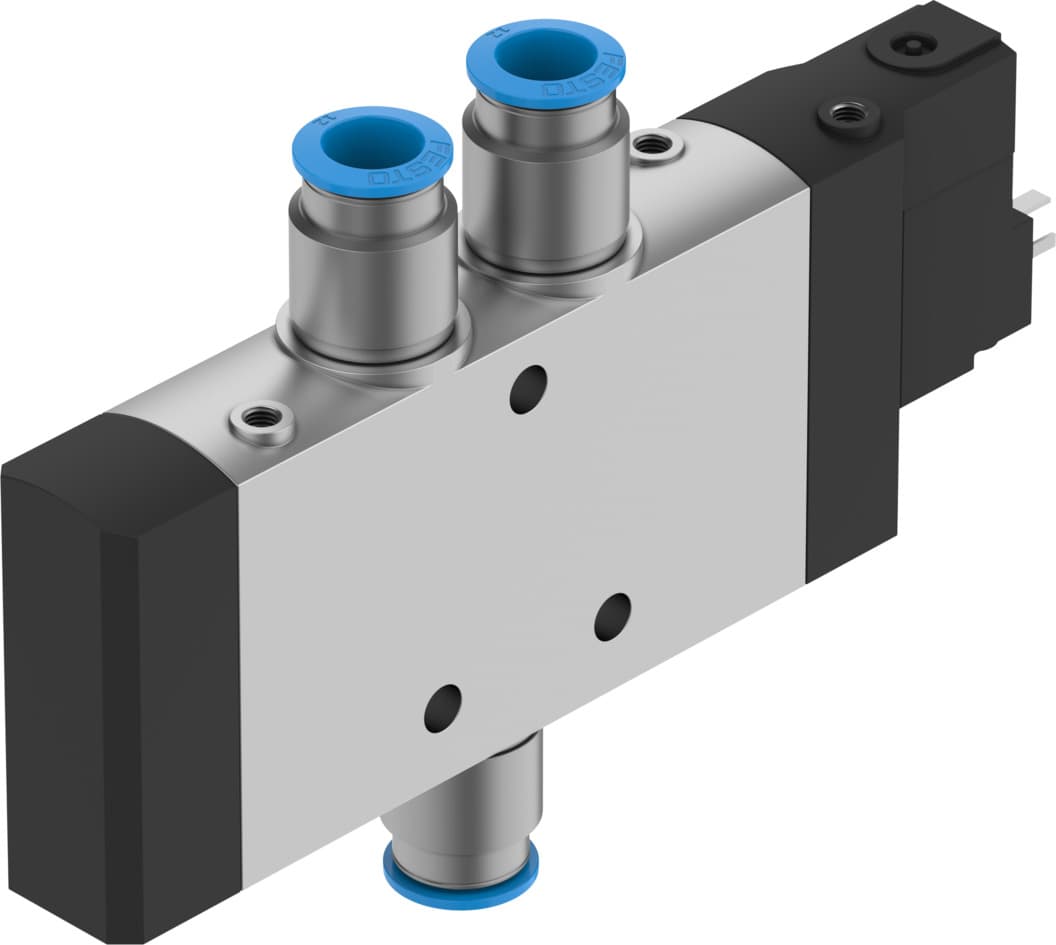

- 1The Festo CPE24-M1H-5L-QS-12 is a 5/2-way, monostable solenoid valve designed for electric actuation, offering precise control and efficient operation in various industrial applications.
- 2With a standard nominal flow rate of 1650 l/min (standardized to DIN 1343), this valve ensures reliable airflow management in pneumatic systems, making it ideal for demanding industrial environments.
- 3The valve operates within a wide temperature range of -5 °C to 50 °C and can be used with compressed air to ISO 8573-1:2010, ensuring compatibility with various operating conditions.
- 4Featuring a durable design with a construction width of 24 mm and made from die-cast aluminum, the CPE24-M1H-5L-QS-12 offers robust performance and long-lasting reliability.
- 5This solenoid valve is UL recognized and meets maritime classification standards, ensuring compliance with safety regulations and making it suitable for use in diverse industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 24mm | Standard nominal flow rate | 1650l/min |
Pneumatic working port | QS-12 | Operating voltage | 24V DC |
Operating pressure | 2.5bar 10bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 11mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991023 |
Valve position ID | Label holder | Lap | Overlap |
Switching time off | 50ms | On switching time | 40ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 3300μs |
Max. negative test pulse on 1 signal | 3100μs | Coil characteristics | 24 V DC: 1.5 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Ambient temperature | -5°C 50°C | Electrical connection | Form C |
Type of mounting | With through-hole | Pilot exhaust air port 82 | M5 |
Pilot exhaust air port 84 | M5 | Pilot air port 12 | M5 |
Pilot air port 14 | M5 | Pneumatic connection 1 | QS-12 |
Pneumatic connection 2 | QS-12 | Pneumatic connection 3 | G3/8 |
Pneumatic connection 4 | QS-12 | Pneumatic connection 5 | G3/8 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 163182 |
Specifications may be subject to change without notice
