Product Model
cpe24-m3h-5/3es-qs-10
Selling Points

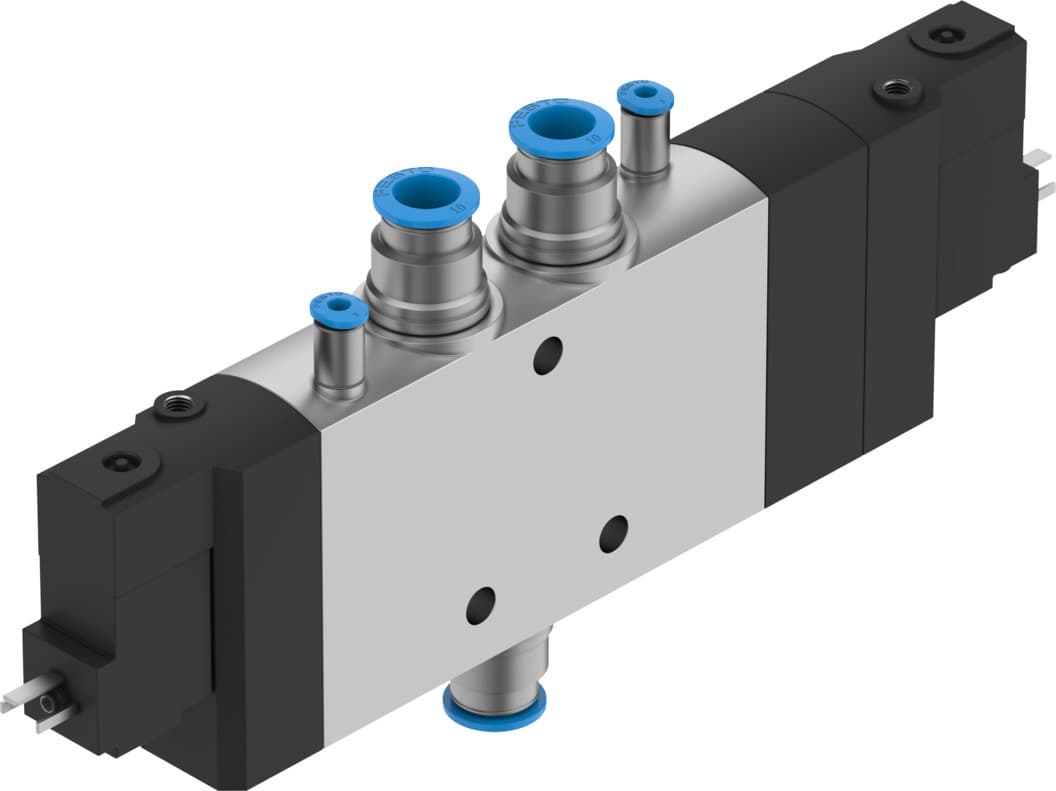

- 1The Festo CPE24-M3H-5/3ES-QS-10 is an electrically actuated 5/3-way solenoid valve, offering a standard nominal flow rate of 1250 l/min and a width of 24 mm.
- 2This valve is designed for pneumatic working ports and operates within a pressure range of -0.09 MPa to 1 MPa, making it suitable for various industrial applications.
- 3The CPE24-M3H-5/3ES-QS-10 features a soft mounting position and non-detenting type of control, ensuring reliable operation and easy integration into automation systems.
- 4With an operating voltage of 230V AC and IP65 protection class, this valve is both efficient and durable, meeting the demands of industrial environments.
- 5The valve includes a mechanical spring reset method and is certified by UL and CE marking, ensuring compliance with international safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, exhausted | Actuation type | Electrical |
Width | 24mm | Standard nominal flow rate | 1250l/min |
Pneumatic working port | QS-10 | Operating voltage | 230V AC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 11mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |
Flow direction | Reversible | Symbol | 00991032 |
Valve position ID | Label holder | Lap | Overlap |
Pilot pressure MPa | 0.25MPa 1MPa | Pilot pressure | 2.5bar 10bar |
Switching time off | 55ms | On switching time | 25ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 3300μs |
Max. negative test pulse on 1 signal | 3100μs | Coil characteristics | 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Electrical connection | Form C | Type of mounting | With through-hole |
Pilot exhaust air port 82 | M5 | Pilot exhaust air port 84 | M5 |
Pilot air port 12 | M5 | Pilot air port 14 | M5 |
Pneumatic connection 1 | QS-10 | Pneumatic connection 2 | QS-10 |
Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | QS-10 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 170346 |
Specifications may be subject to change without notice
