Product Model

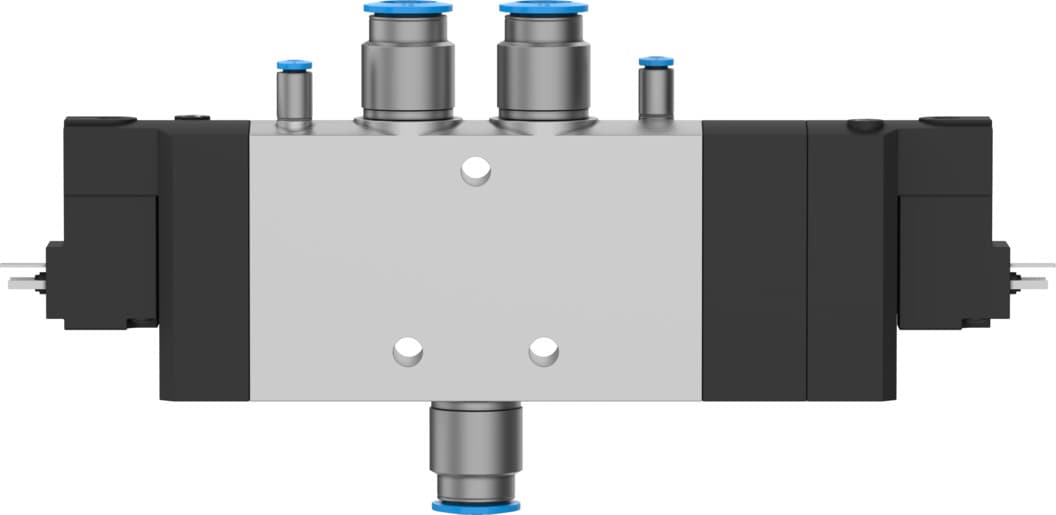

cpe24-m3h-5/3es-qs-12
Selling Points
- 1The CPE24-M3H-5/3ES-QS-12 solenoid valve offers a 5/3 closed function, ensuring precise control and efficient operation in various industrial applications.
- 2This valve is electrically actuated, providing quick and reliable switching times of 55 ms off and 25 ms on, making it ideal for high-speed processes.
- 3With a construction width of 24 mm and a nominal flow rate of 1600 l/min, this valve is built to withstand demanding industrial conditions.
- 4The valve features a mechanical spring return, ensuring consistent performance and long service life. It has been tested for vibration and shock resistance, meeting stringent industrial standards.
- 5The CPE24-M3H-5/3ES-QS-12 is certified by UL and DNV, adhering to EU Low Voltage Directive and maritime classification standards, ensuring safety and reliability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, exhausted | Actuation type | Electrical |
Width | 24mm | Standard nominal flow rate | 1600l/min |
Pneumatic working port | QS-12 | Operating voltage | 230V AC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 11mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |
Flow direction | Reversible | Symbol | 00991032 |
Valve position ID | Label holder | Lap | Overlap |
Pilot pressure MPa | 0.25MPa 1MPa | Pilot pressure | 2.5bar 10bar |
Switching time off | 55ms | On switching time | 25ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 3300μs |
Max. negative test pulse on 1 signal | 3100μs | Coil characteristics | 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Electrical connection | Form C | Type of mounting | With through-hole |
Pilot exhaust air port 82 | M5 | Pilot exhaust air port 84 | M5 |
Pilot air port 12 | M5 | Pilot air port 14 | M5 |
Pneumatic connection 1 | QS-12 | Pneumatic connection 2 | QS-12 |
Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | QS-12 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 170352 |
Specifications may be subject to change without notice
