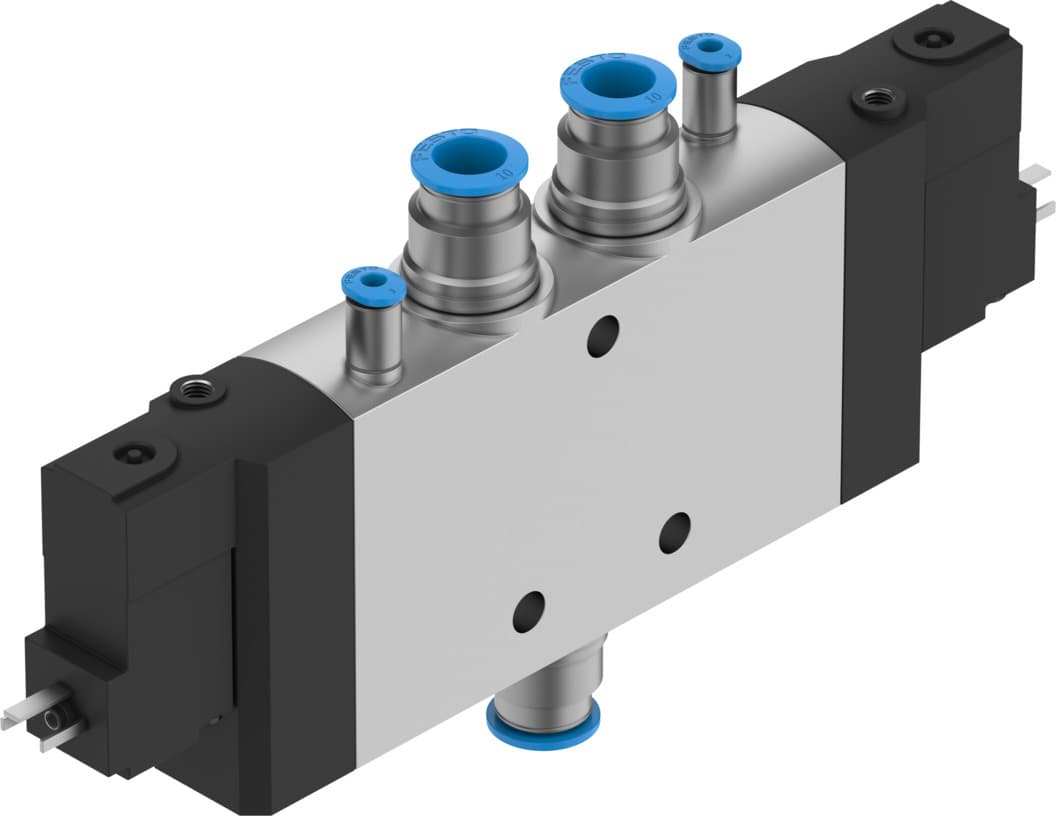

Product Model
cpe24-m3h-5js-qs-10
Selling Points
- 1High-Performance Automation: The Festo CPE24-M3H-5JS-QS-10 air solenoid valve is engineered for high-performance automation, ensuring precise control and efficient operation in various industrial applications.
- 2Electrical Actuation: With electrical actuation, this valve offers reliable and precise control, making it suitable for a wide range of industrial processes that require precise flow management.
- 3Bistable Valve Function: The 5/2 bistable valve function allows for two distinct positions, providing a reliable and consistent flow control mechanism that is easy to operate and maintain.
- 4Robust Design and Certification: The valve features a robust piston gate design, certified to international standards including UL and CE marking, ensuring compliance with global safety regulations.
- 5Versatile Operating Conditions: The CPE24-M3H-5JS-QS-10 operates within a wide range of pressures (0.09 MPa to 1 MPa) and voltages (230V AC), making it adaptable to various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Width | 24mm | Standard nominal flow rate | 1250l/min |
Pneumatic working port | QS-10 | Operating voltage | 230V AC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
Certificate issuing authority | DNV-TAA000032X UL MH19482 | Degree of protection | IP65 With plug socket as per IEC 60529 |
Nominal width | 11mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting via accessory Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |
Symbol | 00991016 | Valve position ID | Label holder |
Lap | Overlap | Pilot pressure MPa | 0.2MPa 1MPa |
Pilot pressure | 2bar 10bar | Changeover time | 25ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 3300μs |
Max. negative test pulse on 1 signal | 3100μs | Coil characteristics | 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Electrical connection | Form C | Type of mounting | With through-hole |
Pilot exhaust air port 82 | M5 | Pilot exhaust air port 84 | M5 |
Pilot air port 12 | M5 | Pilot air port 14 | M5 |
Pneumatic connection 1 | QS-10 | Pneumatic connection 2 | QS-10 |
Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | QS-10 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 163847 |
Specifications may be subject to change without notice
